Electricity Isolator Switches

100A DP Electricity Meter Isolator Switch with T2 SPD Lewden SLM4-SPD1PT2 Ideal for retro fitting type 2 surge protection and electricity meter switch in one unit. Dual screws per termination point for superior connection. Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal Allows safe power isolation without removing the main fuse. A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access. Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y Ingress Protection Rating IP20 (indoor use only) Impact Resistance IK07 Supplied complete with cable entry blank plugs to maintain Ingress Protection The 100A DP Electricity Meter Isolator Switch with Type 2 Surge Protection provides a safe, reliable solution for modern electrical installations. Ideal for retrofit applications, it combines meter isolation and surge protection within one compact unit. Dual screws at each termination point ensure a secure connection, while the two-part cover prevents unauthorised access to incoming supply terminals. Designed for 16mm² and 25mm² double-insulated meter tails, it enables safe power isolation without removing the main fuse. A dedicated safety sealing screw provides additional security. Rated IP20 and IK07, this robust isolator is suitable for indoor domestic and commercial installations. . Colour Grey Current Rating 100A Dimensions (H)156 mm x (W)106mm x (D)71 mm Guarantee 1 Year IP Rating IP20 Lockable Yes Number of Poles Double Pole SPD Yes

Read more less

100A DP Electricity Meter Isolator Switch with Dual Screw Terminals Lewden SLM2-DS Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal Allows safe power isolation without removing the main fuse. A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access. Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y Ingress Protection Rating IP20 (indoor use only) Impact Resistance IK07 Enclousure features 2 separate interlocking covers permitting the separate security sealing of supply and load conductors Supplied complete with cable entry blank plugs to maintain Ingress Protection   The 100A Double Pole Electricity Meter Isolator Switch provides a safe, reliable solution for isolating electrical supplies without removing the main service fuse. Designed for professional meter installations, it features dual screw terminals suitable for 16mm² and 25mm² double insulated meter tails. The robust enclosure incorporates two separate interlocking covers, allowing supply and load conductors to be independently security sealed against unauthorised access. A dedicated safety screw provides additional protection for incoming terminals. Rated IP20 for indoor installations and IK07 for impact resistance, this electricity meter isolator is supplied with cable entry blanking plugs for a secure installation. . Colour Grey Current Rating 100A Dimensions (H)159 mm x (W)75 mm x (D)85 mm Guarantee 1 Year IP Rating IP20 Lockable Yes Number of Poles Double Pole Packaging Types Each

Read more less

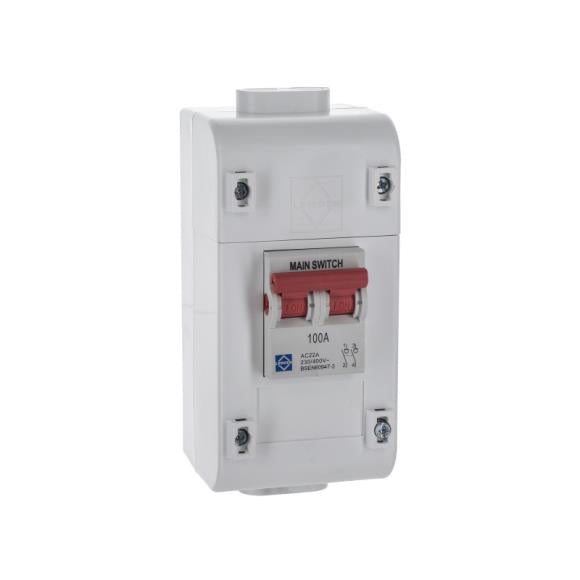

100A DP Electricity Meter Isolator Switch Lewden SLM2-MS Meter isolator switch Lockable cover fixing screws Round cable - round hole Blanks for all cable entries Looking for a reliable and efficient solution for controlling the power supply to your home or business? Look no further than the Lewden SLM2-MS 100A DP Electricity Meter Isolator Switch. This innovative product is designed to provide superior performance and easy operation for a wide range of applications. Featuring a durable and robust construction, the SLM2-MS is designed to withstand even the harshest of environments. This meter isolator switch is rated to 100A and provides double pole isolation, ensuring that your power supply is always under your complete control. With its easy to use design and simple installation, the Lewden SLM2-MS is the perfect choice for both residential and commercial applications. Whether you're looking to upgrade your existing meter isolator switch or install a new one, this product delivers the performance and functionality you need. Invest in the Lewden SLM2-MS 100A DP Electricity Meter Isolator Switch today and enjoy the peace of mind that comes with superior electrical control. With its advanced features and durable construction, you can be confident that your power supply is always under your control. So why wait? Order yours today and take the first step towards total power management! .   Colour Grey Current Rating 100A Dimensions (H)270 mm x (W)135 mm x (D)107 mm Guarantee 1 Year IP Rating IP20 Lockable Yes Number of Poles Double Pole Packaging Types Each

Read more less

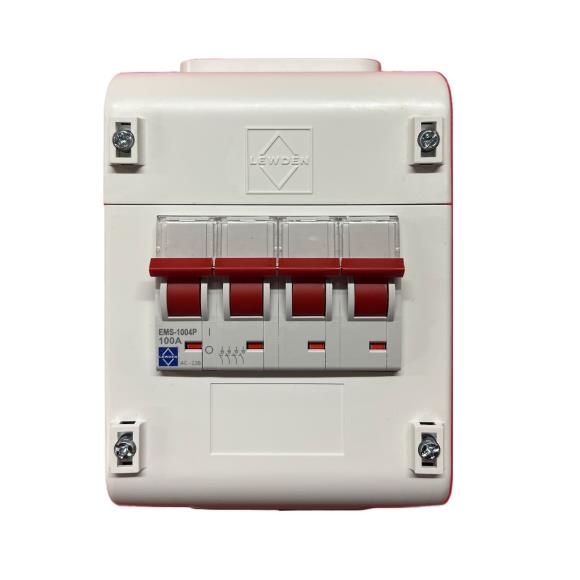

Lewden 100A TP&N Electricity Meter Isolator Switch Lewden SLM4-MS Meter isolator switch Lockable cover fixing screws Round cable - round hole Blanks for all cable entries If you're in search of a powerful and versatile solution for controlling your power supply, the Lewden SLM4-MS 100A TP&N Electricity Meter Isolator Switch is the perfect choice. This top-of-the-line product is designed to deliver exceptional performance and easy operation for a wide range of applications. Featuring a durable and robust construction, the SLM4-MS is designed to withstand even the harshest of environments. This meter isolator switch is rated to 100A and provides triple pole and neutral isolation, ensuring that your power supply is always under your complete control. With its easy to use design and simple installation, the Lewden SLM4-MS is the perfect choice for both residential and commercial applications. Whether you're looking to upgrade your existing meter isolator switch or install a new one, this product delivers the performance and functionality you need. Invest in the Lewden SLM4-MS 100A TP&N Electricity Meter Isolator Switch today and enjoy the peace of mind that comes with superior electrical control. With its advanced features and durable construction, you can be confident that your power supply is always under your control. So why wait? Order yours today and take the first step towards total power management!       Colour Grey Current Rating 100A Guarantee 1 Year IP Rating IP20 Lockable Yes Number of Poles TP&N Packaging Types Each

Read more less

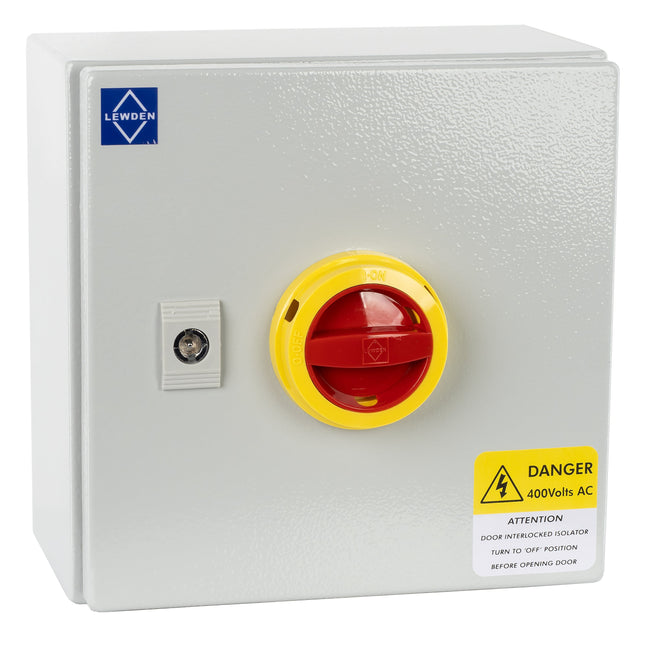

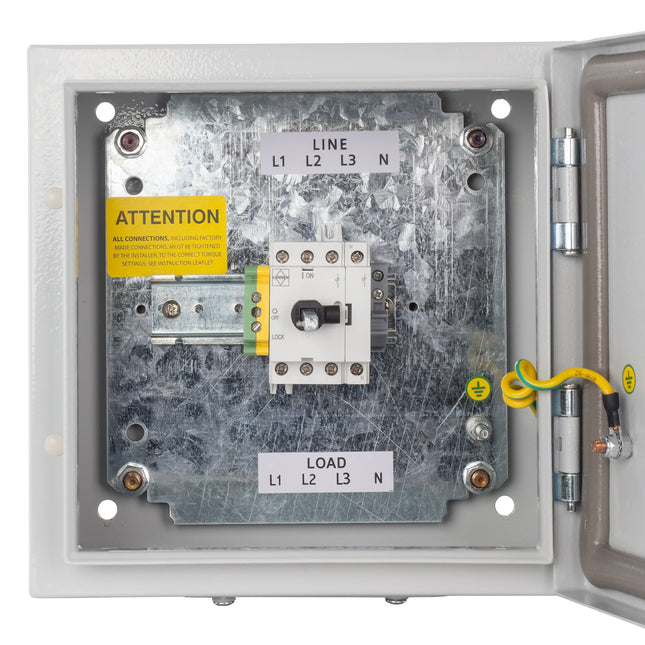

32A TP+N Metal Isolator Switch Disconnector Lewden IS324P  Industrial socket outlet, 32A, 4P. Robust and wide IP65 Enclosures Fully rated to AC-23A category - allows safe operation even with highlyinductive loads (e.g. Motors, etc.) Pad lockable and interlocked door Powder coated mild steel enclosures with a wide space for comfortable wiring Caged-clamped termination The Lewden IS324P is an industrial socket outlet that features a 32A, 4P metal isolator switch disconnector. With robust IP65 enclosures and AC-23A rating, it allows safe operation with highly inductive loads. The pad lockable and interlocked door, along with caged-clamped termination, offer added safety and convenience. Its powder-coated mild steel enclosures provide a wide space for comfortable wiring.   . Rated current 32A IP Protection degree IP65 Manufacturing material Steel Dimensions 250x250x150mm (HWD) Standards BS EN 60947-3

Read more less

63A TP+N Metal Clad Fused Switch Lewden IS634P  Industrial socket outlet, 63A, 4P. Robust and wide IP65 Enclosures Fully rated to AC-23A category - allows safe operation even with highlyinductive loads (e.g. Motors, etc.) Pad lockable and interlocked door Powder coated mild steel enclosures with a wide space for comfortable wiring Caged-clamped termination The Lewden IS634P is a 63A TP+N metal clad fused switch designed for industrial use. Its robust and IP65 rated enclosures provide protection against harsh environments. With an AC-23A category rating, it can safely operate with highly inductive loads. The pad lockable and interlocked door ensures safety. Its wide wiring space and caged-clamped termination make for easy installation.   . Rated current 63A IP Protection degree IP65 Manufacturing material Steel Dimensions 250x250x200mm (HWD) Standards BS EN 60947-3

Read more less

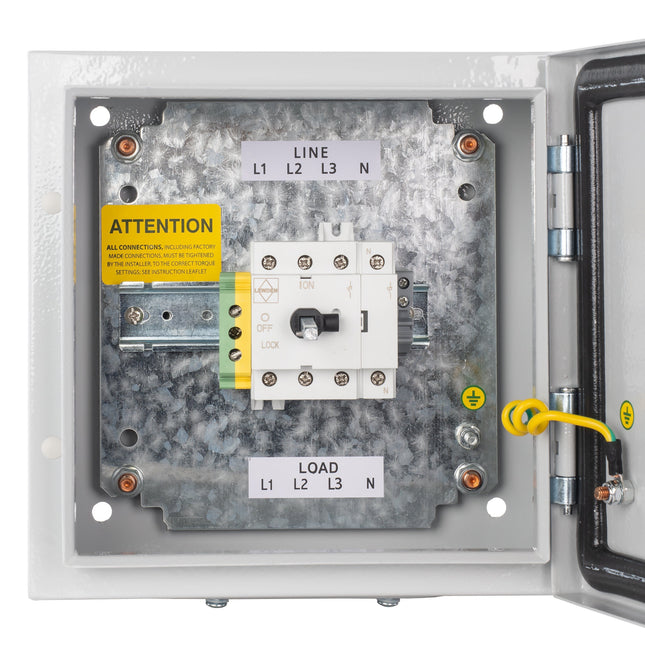

80A TP+N Metal Clad Fused Switch Lewden IS804P  Industrial socket outlet, 80A, 4P. Robust and wide IP65 Enclosures Fully rated to AC-23A category - allows safe operation even with highlyinductive loads (e.g. Motors, etc.) Pad lockable and interlocked door Powder coated mild steel enclosures with a wide space for comfortable wiring Caged-clamped termination The Lewden IS804P 80A TP+N Metal Clad Fused Switch is an industrial socket outlet that offers robust and IP65 rated enclosures. With a fully rated AC-23A category, it allows safe operation with highly inductive loads and features a pad lockable and interlocked door. Its powder coated mild steel enclosures provide a wide space for comfortable wiring, while the caged-clamped termination ensures secure connections.   . Rated current 80A IP Protection degree IP65 Manufacturing material Steel Dimensions 250x250x200mm (HWD) Standards BS EN 60947-3

Read more less

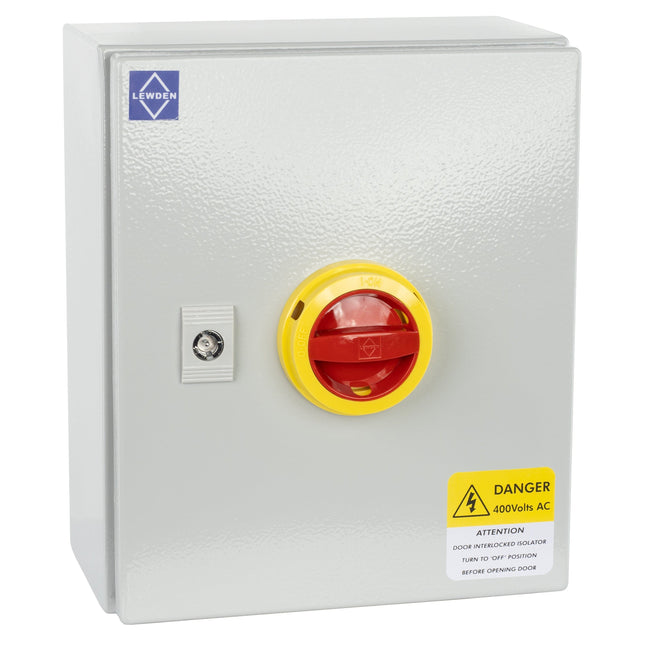

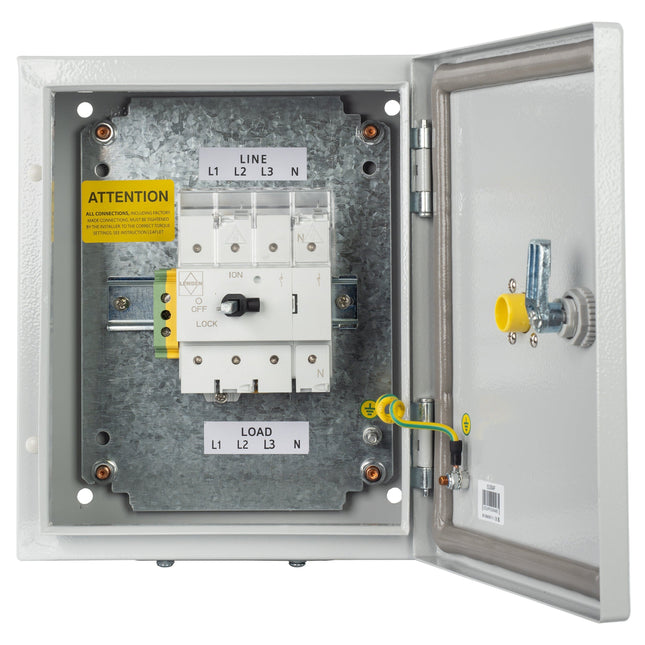

100A TP+N Metal Isolator Switch Disconnector Lewden IS1004P  Industrial socket outlet, 100A, 4P. Robust and wide IP65 Enclosures Fully rated to AC-23A category - allows safe operation even with highlyinductive loads (e.g. Motors, etc.) Pad lockable and interlocked door Powder coated mild steel enclosures with a wide space for comfortable wiring Caged-clamped termination Expertly designed for industrial use, the Lewden IS1004P is a 100A TP+N metal isolator switch disconnector socket outlet. With a robust IP65 enclosure and AC-23A rating, it can safely operate even with highly inductive loads. Its pad lockable and interlocked door, along with caged-clamped termination, make it a reliable and easy to use choice. . Rated current 100A IP Protection degree IP65 Manufacturing material Steel Dimensions 300x250x200mm (HWD) Standards BS EN 60947-3

Read more less

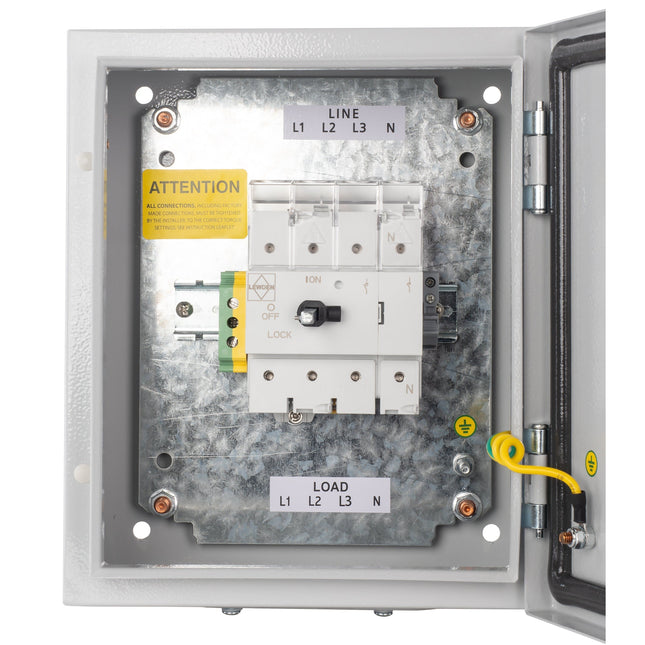

125A TP+N Metal Isolator Switch Disconnector Lewden IS1254P  Isolator Switch, AC23A allows safe operation even with highly inductive loads [motors etc] Powder coated mild steel enclosure with RAL7035 finish Padlockable in the "OFF" position and door interlocked in the "ON" position The Lewden IS1254P is a 125A TP+N Metal Isolator Switch Disconnector that offers safe operation, even with highly inductive loads such as motors. Its powder coated mild steel enclosure with RAL7035 finish is both durable and sleek. You can easily secure the switch in the "OFF" position with a padlock and ensure safety with its door interlocking feature in the "ON" position. . Rated current 125A IP Protection degree IP65 Manufacturing material Steel Dimensions 300x250x200mm (HWD) Standards BS EN 60947-3

Read more less
