Lewden SLM4-SPD1PT2 100A DP Electricity Meter Isolator Switch with T2 SPD

Description

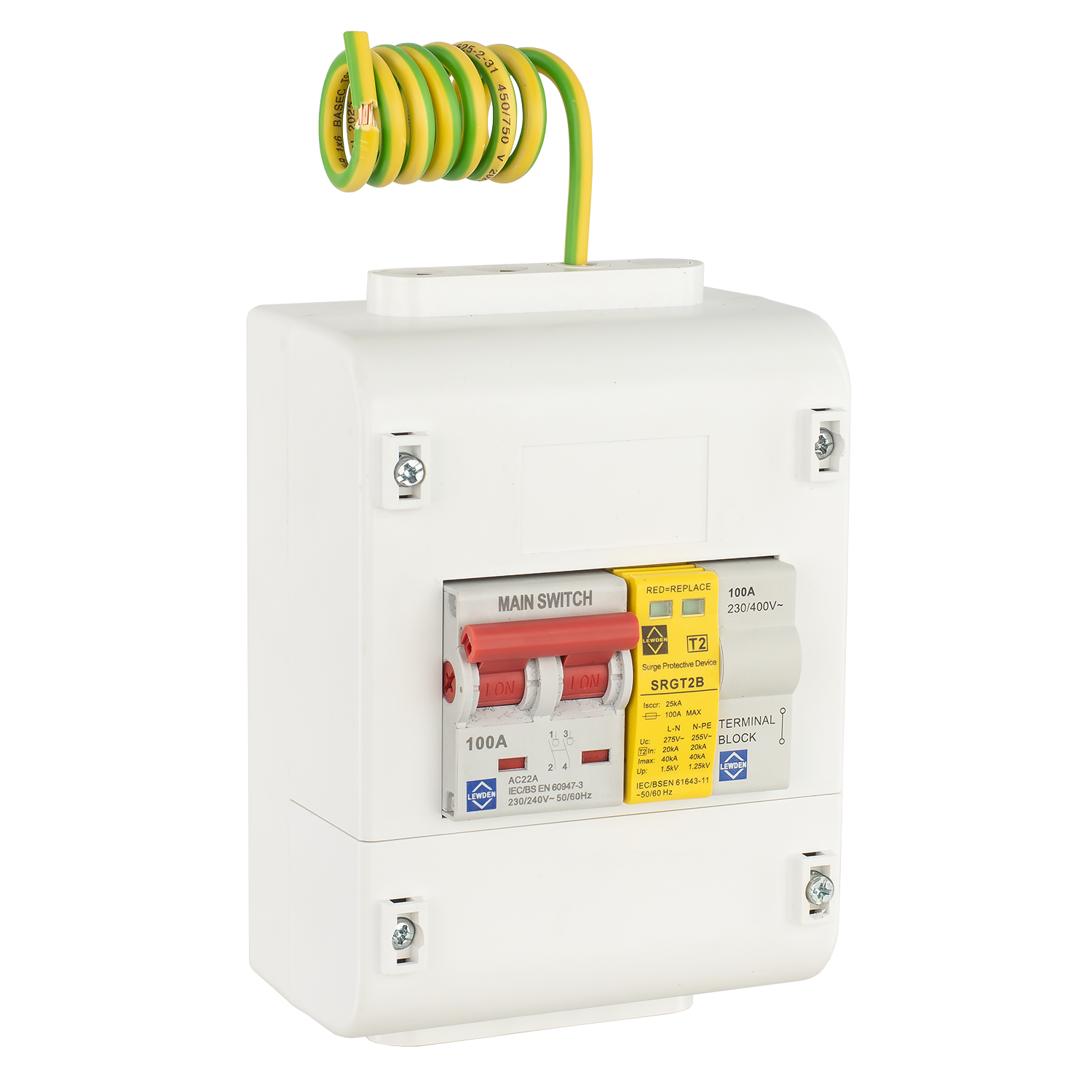

100A DP Electricity Meter Isolator Switch with T2 SPD

Lewden SLM4-SPD1PT2

  • Ideal for retro fitting type 2 surge protection and electricity meter switch in one unit.
  • Dual screws per termination point for superior connection.
  • Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal
  • Allows safe power isolation without removing the main fuse.
  • A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access.
  • Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y
  • Ingress Protection Rating IP20 (indoor use only)
  • Impact Resistance IK07
  • Supplied complete with cable entry blank plugs to maintain Ingress Protection

The 100A DP Electricity Meter Isolator Switch with Type 2 Surge Protection provides a safe, reliable solution for modern electrical installations. Ideal for retrofit applications, it combines meter isolation and surge protection within one compact unit. Dual screws at each termination point ensure a secure connection, while the two-part cover prevents unauthorised access to incoming supply terminals. Designed for 16mm² and 25mm² double-insulated meter tails, it enables safe power isolation without removing the main fuse. A dedicated safety sealing screw provides additional security. Rated IP20 and IK07, this robust isolator is suitable for indoor domestic and commercial installations.


.


Colour Grey
Current Rating 100A
Dimensions (H)156 mm x (W)106mm x (D)71 mm
Guarantee 1 Year
IP Rating IP20
Lockable Yes
Number of Poles Double Pole
SPD Yes

Read more

Lewden SLM4-SPD1PT2 100A DP Electricity Meter Isolator Switch with T2 SPD

Product form

SKU: SLM4-SPD1PT2

100A DP Electricity Meter Isolator Switch with T2 SPD Lewden SLM4-SPD1PT2 Ideal for retro fitting type 2 surge protection and... Read more

Free pickup in our shop(s)

£37.52 ex VAT £45.02 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
    • Free shipping on all orders above £100 + vat
      Specification


    Colour Grey
    Current Rating 100A
    Dimensions (H)156 mm x (W)106mm x (D)71 mm
    Guarantee 1 Year
    IP Rating IP20
    Lockable Yes
    Number of Poles Double Pole
    SPD Yes
      Downloads

    Description

    100A DP Electricity Meter Isolator Switch with T2 SPD

    Lewden SLM4-SPD1PT2

    • Ideal for retro fitting type 2 surge protection and electricity meter switch in one unit.
    • Dual screws per termination point for superior connection.
    • Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal
    • Allows safe power isolation without removing the main fuse.
    • A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access.
    • Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y
    • Ingress Protection Rating IP20 (indoor use only)
    • Impact Resistance IK07
    • Supplied complete with cable entry blank plugs to maintain Ingress Protection

    The 100A DP Electricity Meter Isolator Switch with Type 2 Surge Protection provides a safe, reliable solution for modern electrical installations. Ideal for retrofit applications, it combines meter isolation and surge protection within one compact unit. Dual screws at each termination point ensure a secure connection, while the two-part cover prevents unauthorised access to incoming supply terminals. Designed for 16mm² and 25mm² double-insulated meter tails, it enables safe power isolation without removing the main fuse. A dedicated safety sealing screw provides additional security. Rated IP20 and IK07, this robust isolator is suitable for indoor domestic and commercial installations.


    .


    Colour Grey
    Current Rating 100A
    Dimensions (H)156 mm x (W)106mm x (D)71 mm
    Guarantee 1 Year
    IP Rating IP20
    Lockable Yes
    Number of Poles Double Pole
    SPD Yes
