Heat Pump Type B RCBOs provide advanced electrical protection for modern heat pump installations, combining overcurrent and residual current protection within a compact device. Designed to detect AC, pulsating DC and smooth DC residual currents, Type B RCBOs are ideal for equipment using variable-speed drives and inverter technology. They help ensure reliable circuit protection, improved electrical safety and compliance with installation requirements, making them an excellent choice for residential and commercial heat pump systems throughout the UK.
Heat Pump Type B RCBOs
-

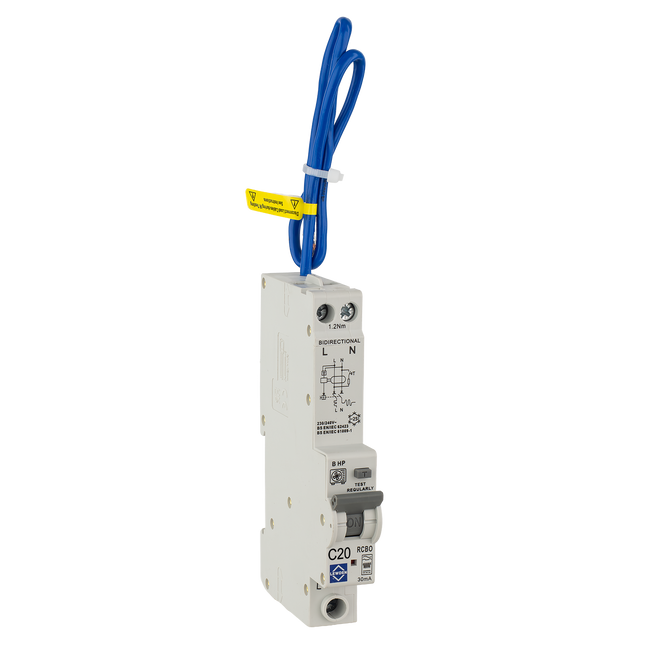

Lewden Lewden RCBO C Curve 6kA 30mA Type B - Heat Pump
RCBO C Curve 6kA 30mA Type B - Heat Pump Lewden C Curve Type B 6kA breaking capacity 30mA sensitivity Detects DC fault currents High frequency operation (20kHz+) Ideal for heat pumps & EV charging TT earthing compatible The Lewden RCBO C Curve 6kA 30mA Type B is designed to provide reliable electrical protection for modern heat pump and EV charging installations. Featuring a C Curve operating characteristic, 6kA breaking capacity and 30mA residual current sensitivity, this RCBO offers dependable protection against overloads, short circuits and earth leakage faults. Type B technology detects AC, pulsating DC and smooth DC fault currents, making it suitable for equipment incorporating electronic power controls. High-frequency operation above 20kHz enhances compatibility with modern inverter-driven systems. Ideal for heat pumps, EV chargers and other demanding electrical applications, with compatibility for TT earthing arrangements. . Brand Lewden Type (RCD Class) B Dimensions (H) 118mm x (W) 18mm Frequency 50/60Hz Guarantee 1 Year Incoming Terminal Capacity 16mm² Mounting DIN Rail Number of Modules 1 Number of Poles 2 Outgoing Terminal Capacity 16mm² Short Circuit Rating 6kA Tripping Characteristics C Curve Tripping Sensitivity 30mA Voltage Rating 230V / 400V
£126.31 ex VAT £151.57 inc VAT
-

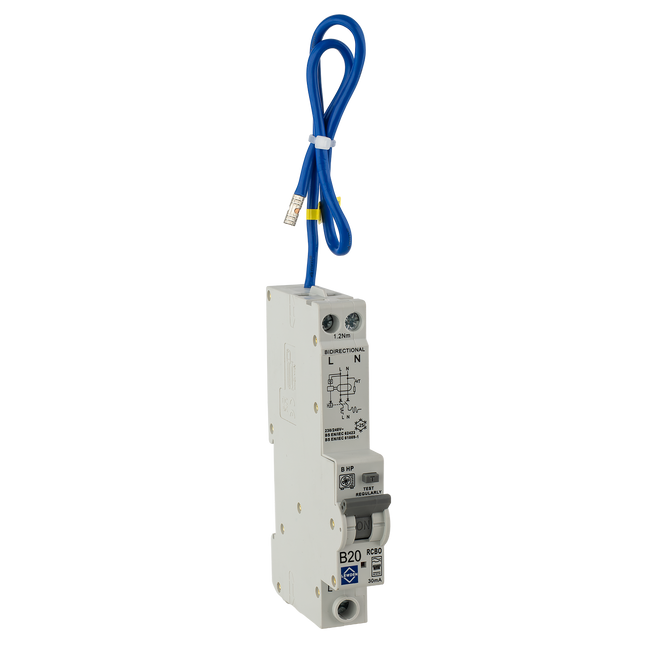

Lewden Lewden RCBO B Curve 6kA 30mA Type B - Heat Pump
RCBO B Curve 6kA 30mA Type B - Heat Pump Lewden Type B 6kA breaking capacity 30mA sensitivity Detects DC fault currents High frequency operation (20kHz+) Ideal for heat pumps & EV charging TT earthing compatible The Lewden Type B RCBO is designed to provide reliable electrical protection for modern installations, including heat pumps and EV charging systems. Featuring a B Curve characteristic, 6kA breaking capacity and 30mA residual current sensitivity, it combines overcurrent and earth leakage protection in one compact device. Advanced Type B technology detects AC, pulsating DC and smooth DC fault currents, providing enhanced protection for equipment using inverter technology. With high-frequency operation above 20kHz and compatibility with TT earthing systems, this RCBO is an excellent choice for heat pump installations, EV chargers and other applications requiring dependable Type B electrical protection. . Brand Lewden Type (RCD Class) B Dimensions (H) 118mm x (W) 18mm Frequency 50/60Hz Guarantee 1 Year Incoming Terminal Capacity 16mm² Mounting DIN Rail Number of Modules 1 Number of Poles 2 Outgoing Terminal Capacity 16mm² Short Circuit Rating 6kA Tripping Characteristics B Curve Tripping Sensitivity 30mA Voltage Rating 230V / 400V
£126.31 ex VAT £151.57 inc VAT
