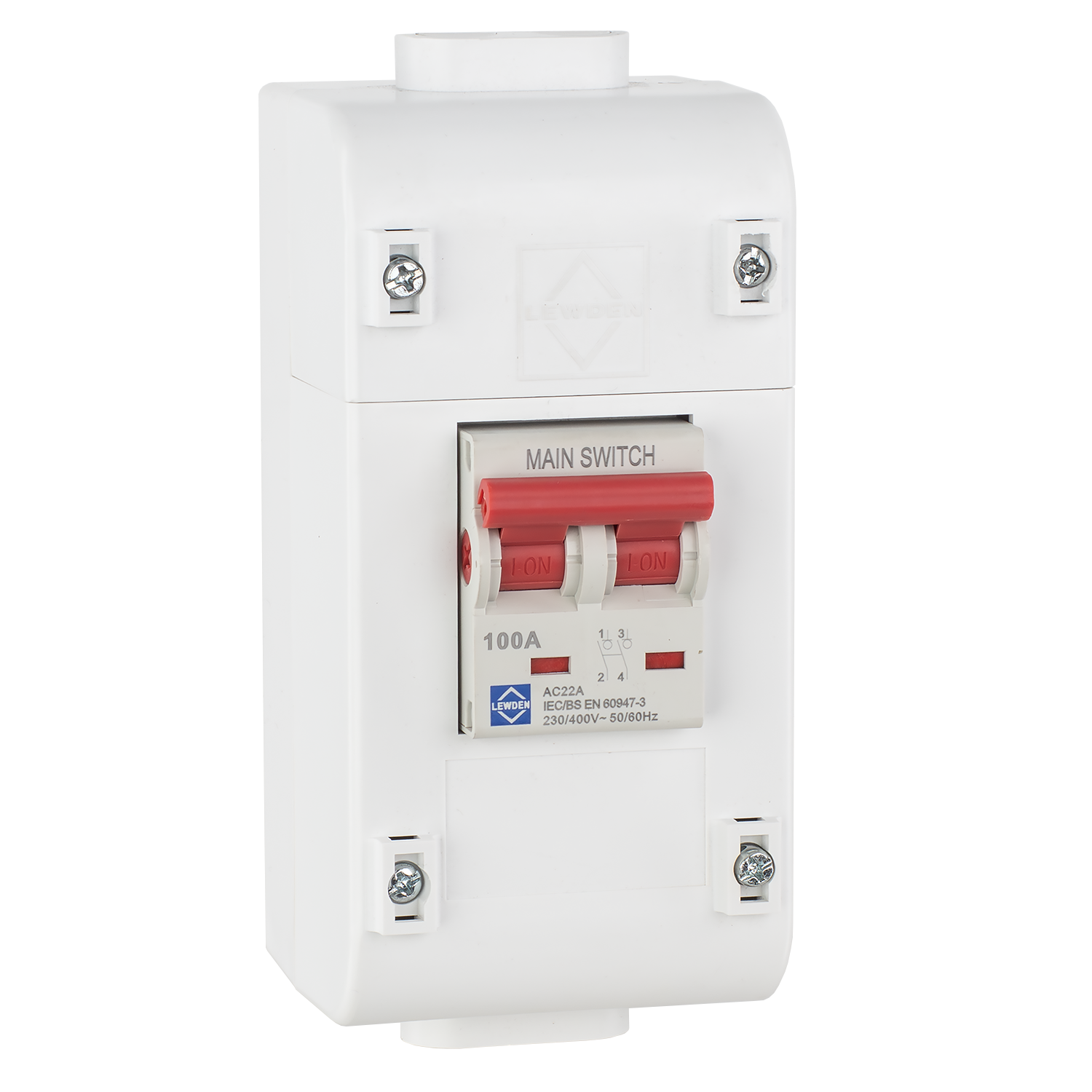

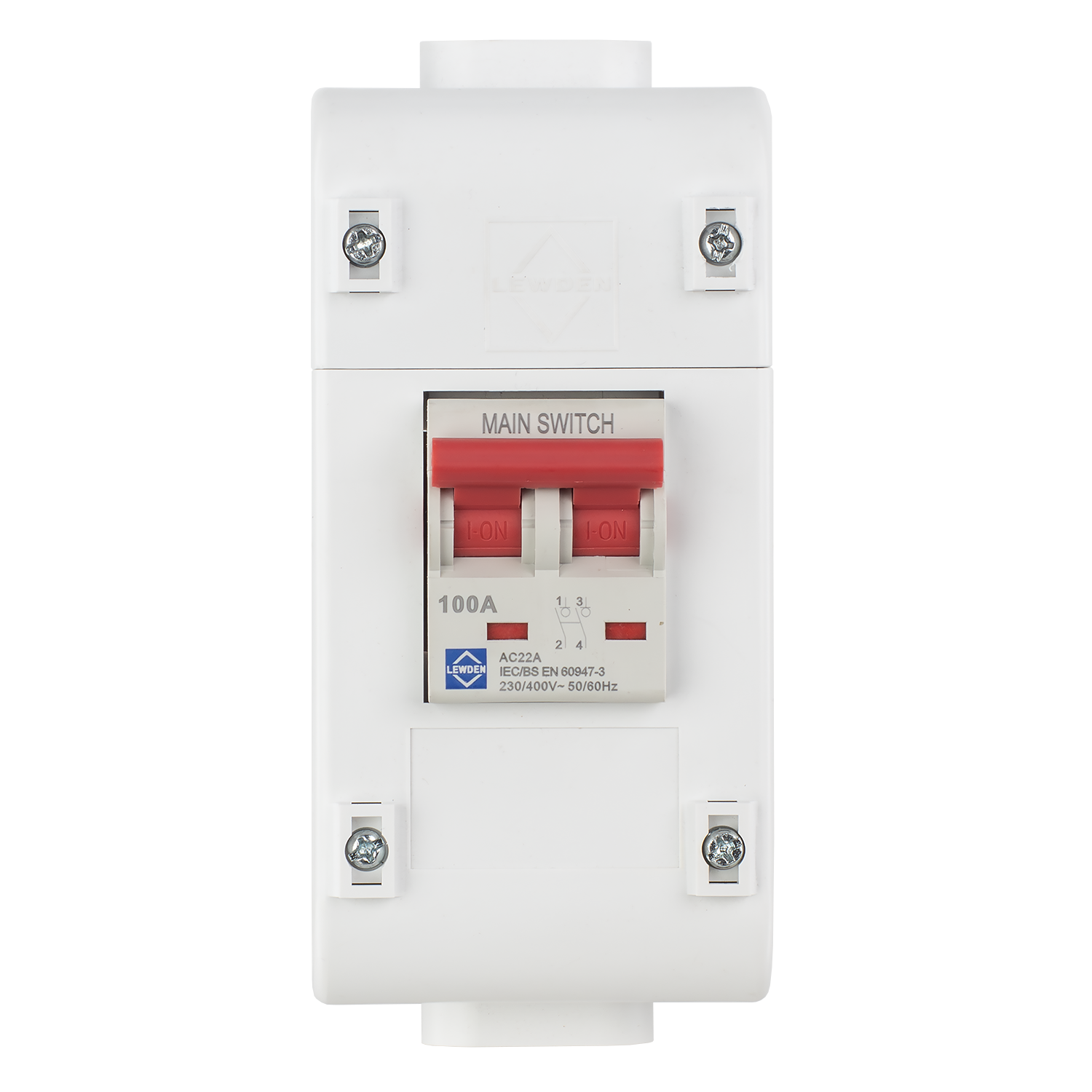

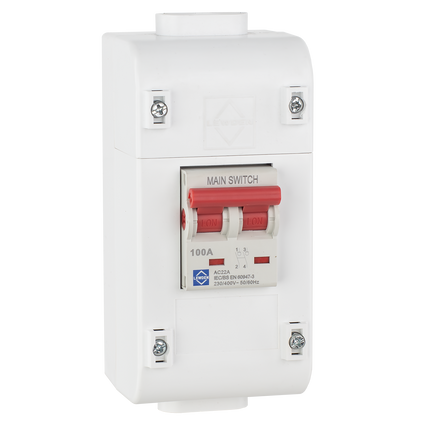

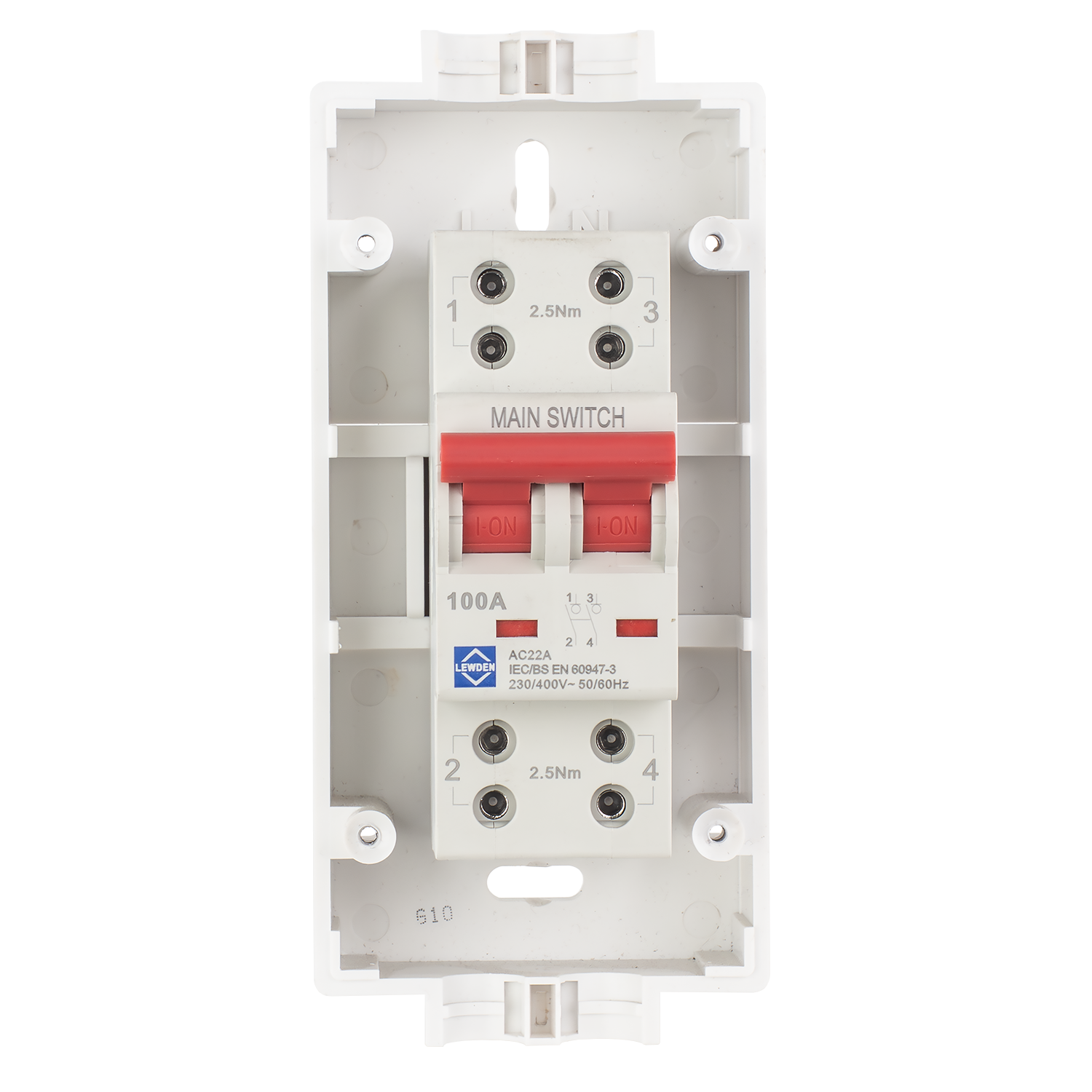

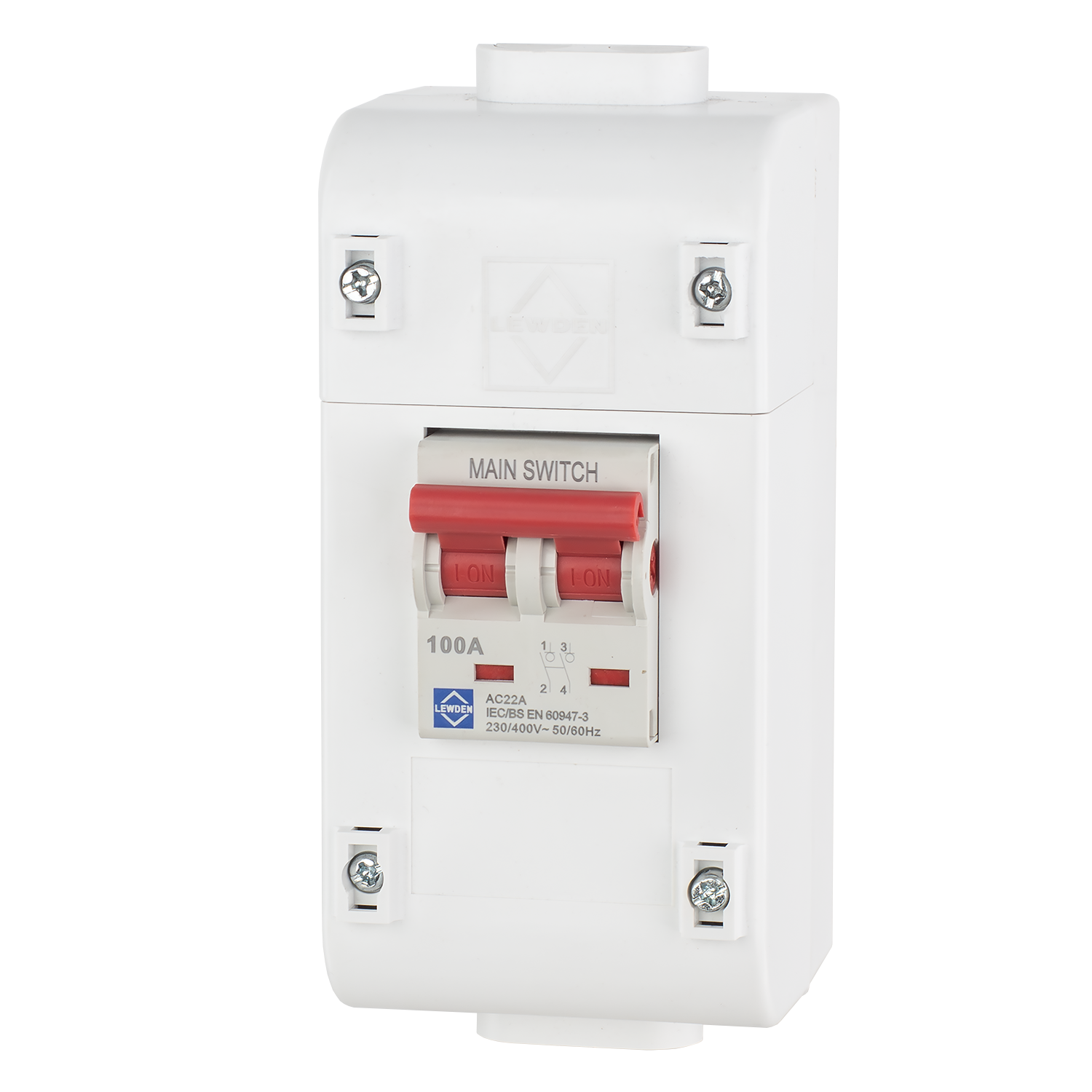

Lewden SLM2-DS 100A DP Electricity Meter Isolator Switch with Dual Screw Terminals

Description

100A DP Electricity Meter Isolator Switch with Dual Screw Terminals

Lewden SLM2-DS

  • Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal
  • Allows safe power isolation without removing the main fuse.
  • A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access.
  • Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y
  • Ingress Protection Rating IP20 (indoor use only)
  • Impact Resistance IK07
  • Enclousure features 2 separate interlocking covers permitting the separate security sealing of supply and load conductors
  • Supplied complete with cable entry blank plugs to maintain Ingress Protection



The 100A Double Pole Electricity Meter Isolator Switch provides a safe, reliable solution for isolating electrical supplies without removing the main service fuse. Designed for professional meter installations, it features dual screw terminals suitable for 16mm² and 25mm² double insulated meter tails. The robust enclosure incorporates two separate interlocking covers, allowing supply and load conductors to be independently security sealed against unauthorised access. A dedicated safety screw provides additional protection for incoming terminals. Rated IP20 for indoor installations and IK07 for impact resistance, this electricity meter isolator is supplied with cable entry blanking plugs for a secure installation.

.


Colour Grey
Current Rating 100A
Dimensions (H)159 mm x (W)75 mm x (D)85 mm
Guarantee 1 Year
IP Rating IP20
Lockable Yes
Number of Poles Double Pole
Packaging Types Each

Read more

Lewden SLM2-DS 100A DP Electricity Meter Isolator Switch with Dual Screw Terminals

Product form

SKU: SLM2-DS

100A DP Electricity Meter Isolator Switch with Dual Screw Terminals Lewden SLM2-DS Two-part cover prevents access to incoming supply terminals... Read more

Free pickup in our shop(s)

£14.44 ex VAT £17.33 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
    • Free shipping on all orders above £100 + vat
      Specification


    Colour Grey
    Current Rating 100A
    Dimensions (H)159 mm x (W)75 mm x (D)85 mm
    Guarantee 1 Year
    IP Rating IP20
    Lockable Yes
    Number of Poles Double Pole
    Packaging Types Each
      Downloads

    Description

    100A DP Electricity Meter Isolator Switch with Dual Screw Terminals

    Lewden SLM2-DS

    • Two-part cover prevents access to incoming supply terminals once installed without the removal of a safety seal
    • Allows safe power isolation without removing the main fuse.
    • A dedicated safety screw enables a wire seal to be applied, securing the bottom cover against unauthorized access.
    • Designed for use with 16mm² & 25mm² double insulated meter tails type 6181Y
    • Ingress Protection Rating IP20 (indoor use only)
    • Impact Resistance IK07
    • Enclousure features 2 separate interlocking covers permitting the separate security sealing of supply and load conductors
    • Supplied complete with cable entry blank plugs to maintain Ingress Protection



    The 100A Double Pole Electricity Meter Isolator Switch provides a safe, reliable solution for isolating electrical supplies without removing the main service fuse. Designed for professional meter installations, it features dual screw terminals suitable for 16mm² and 25mm² double insulated meter tails. The robust enclosure incorporates two separate interlocking covers, allowing supply and load conductors to be independently security sealed against unauthorised access. A dedicated safety screw provides additional protection for incoming terminals. Rated IP20 for indoor installations and IK07 for impact resistance, this electricity meter isolator is supplied with cable entry blanking plugs for a secure installation.

    .


    Colour Grey
    Current Rating 100A
    Dimensions (H)159 mm x (W)75 mm x (D)85 mm
    Guarantee 1 Year
    IP Rating IP20
    Lockable Yes
    Number of Poles Double Pole
    Packaging Types Each
