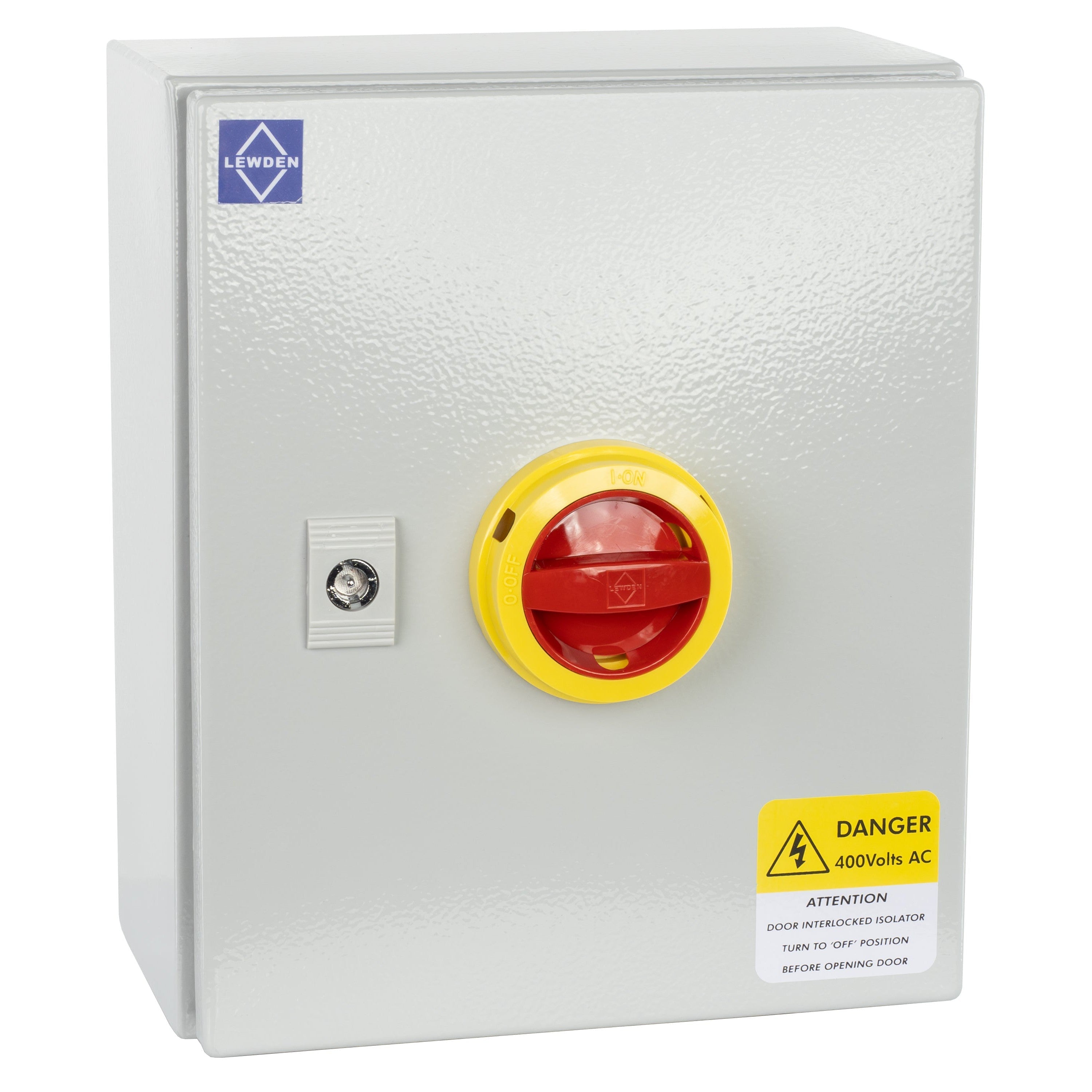

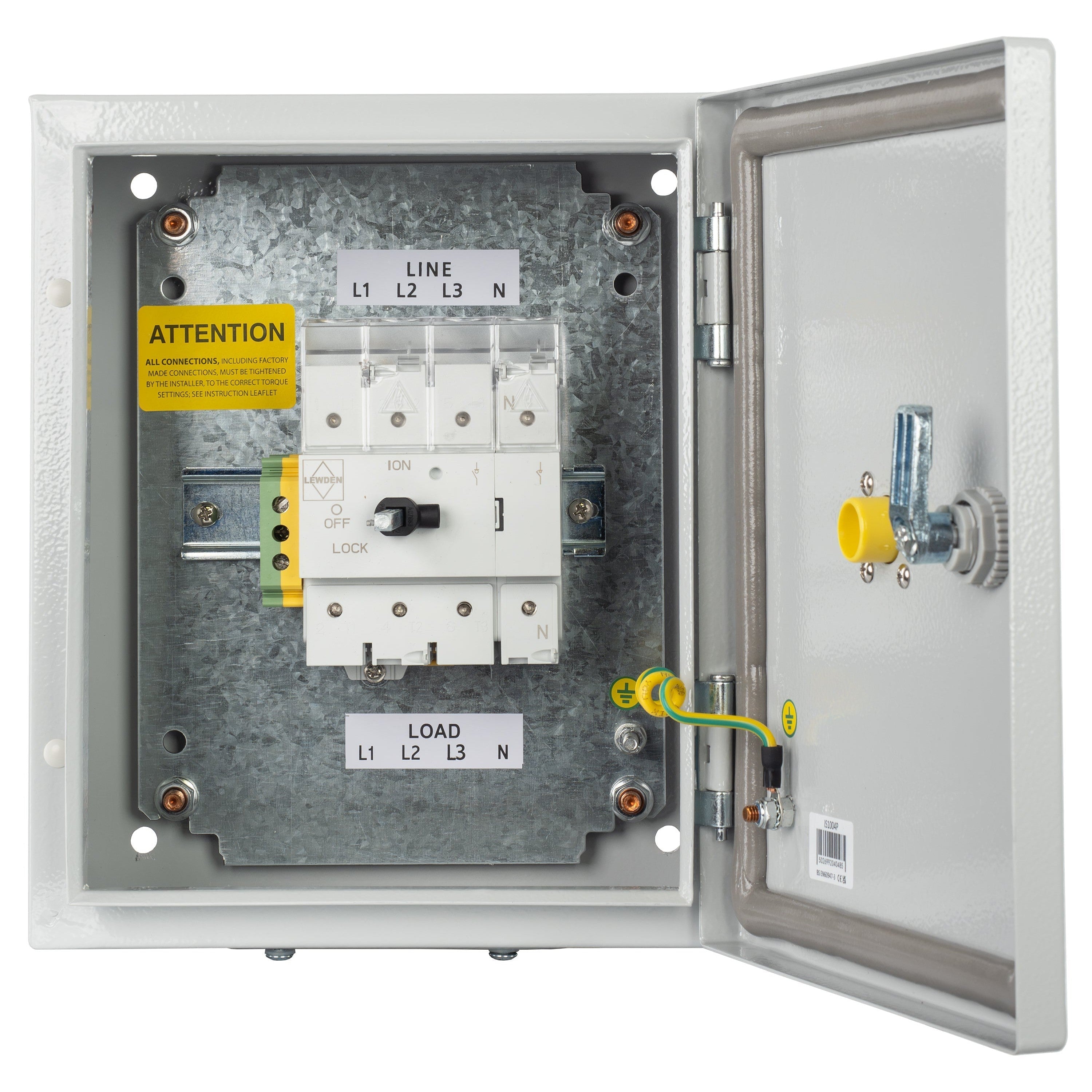

Lewden IS1004P 100A TP+N Metal Isolator Switch Disconnector

Description

100A TP+N Metal Isolator Switch Disconnector

Lewden IS1004P

  • Industrial socket outlet, 100A, 4P.
  • Robust and wide IP65 Enclosures
  • Fully rated to AC-23A category - allows safe operation even with highly
    inductive loads (e.g. Motors, etc.)
  • Pad lockable and interlocked door
  • Powder coated mild steel enclosures with a wide space for comfortable wiring
  • Caged-clamped termination


Expertly designed for industrial use, the Lewden IS1004P is a 100A TP+N metal isolator switch disconnector socket outlet. With a robust IP65 enclosure and AC-23A rating, it can safely operate even with highly inductive loads. Its pad lockable and interlocked door, along with caged-clamped termination, make it a reliable and easy to use choice.

.

Rated current 100A
IP Protection degree IP65
Manufacturing material Steel
Dimensions 300x250x200mm (HWD)
Standards BS EN 60947-3

Lewden IS1004P 100A TP+N Metal Isolator Switch Disconnector

Product form

SKU: IS1004P

100A TP+N Metal Isolator Switch Disconnector Lewden IS1004P  Industrial socket outlet, 100A, 4P. Robust and wide IP65 Enclosures Fully rated... Read more

Free pickup in our shop(s)

£106.44 ex VAT £127.73 inc VAT

Next day delivery

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
    • Free shipping on all orders above £100 + vat
      Specification
    Rated current 100A
    IP Protection degree IP65
    Manufacturing material Steel
    Dimensions 300x250x200mm (HWD)
    Standards BS EN 60947-3
      Downloads

    Description

    100A TP+N Metal Isolator Switch Disconnector

    Lewden IS1004P

    • Industrial socket outlet, 100A, 4P.
    • Robust and wide IP65 Enclosures
    • Fully rated to AC-23A category - allows safe operation even with highly
      inductive loads (e.g. Motors, etc.)
    • Pad lockable and interlocked door
    • Powder coated mild steel enclosures with a wide space for comfortable wiring
    • Caged-clamped termination


    Expertly designed for industrial use, the Lewden IS1004P is a 100A TP+N metal isolator switch disconnector socket outlet. With a robust IP65 enclosure and AC-23A rating, it can safely operate even with highly inductive loads. Its pad lockable and interlocked door, along with caged-clamped termination, make it a reliable and easy to use choice.

    .

    Rated current 100A
    IP Protection degree IP65
    Manufacturing material Steel
    Dimensions 300x250x200mm (HWD)
    Standards BS EN 60947-3
