Main Switch Boards

3 Way 100A Metal RCBO Consumer Unit Lewden PRO-R03W-R1 Light grey finish Extra height for single module RCBOs Round knockouts to top, bottom, back and sides 20mm, 25mm and 32mm Supplied complete with circuit identification labels, phase insulators and module blanks 1 x Extra module included for the installation of a surge protection device The Lewden PRO-R03W-R1 is a high-quality 2 + 1 way 100A metal RCBO consumer unit, featuring a light grey finish and extra height for single module RCBOs. With round knockouts to the top, bottom, back, and sides in various sizes, it offers flexibility for installation. This unit also includes circuit identification labels, phase insulators, and a spare module for a surge protection device. . Brand Lewden Current Rating 100A Depth 106mm Dimensions (H)266 mm x (W)136 mm x (D)106 mm Door Type Top Hinged Guarantee 2 Years Height 266mm Incoming Device 100A Isolator Mounting Surface Number of Modules 5 Number of Outgoing Ways 3 Packaging Types Each Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted No Surge Protection Ready Yes Voltage Rating 230V Weight 1.98kg Width 136mm

Read more less

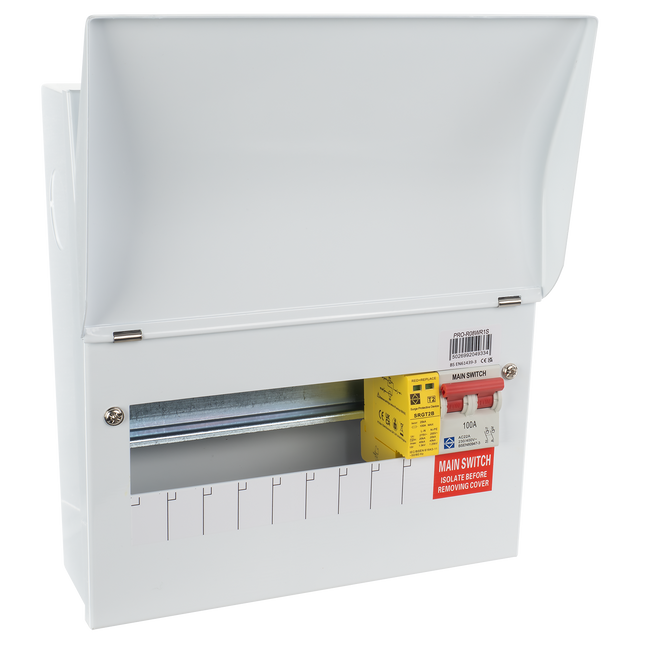

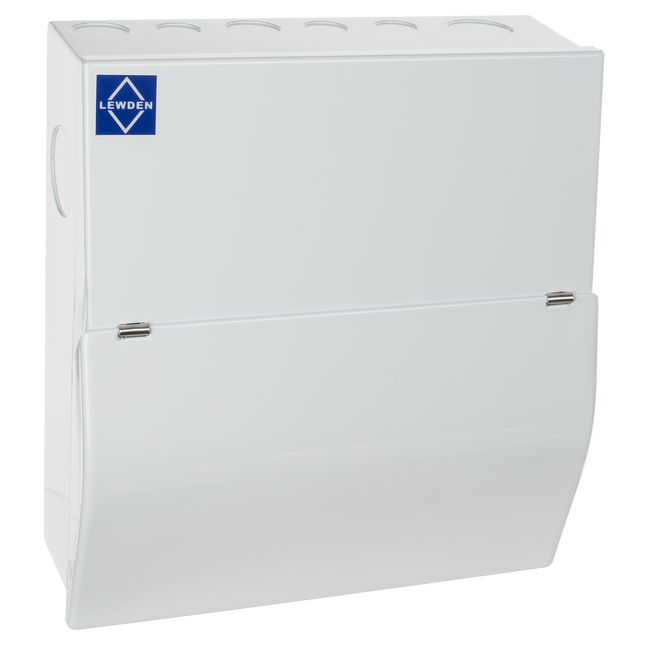

7 Way RCBO Consumer Unit with Surge Protection Lewden PRO-R08W-R1S 7 usable ways 100A main switch incomer Surge Protection Device with 32A MCB Earth and neutral terminal bars at the top Removable and raised DIN rail Round knock-outs on all faces Expertly designed for safety and convenience, the Lewden PRO-R08W-R1S 7 Way RCBO Consumer Unit with Surge Protection offers 7 usable ways and a 100A main switch incomer. Equipped with a Surge Protection Device and 32A MCB, this unit also features removable and raised DIN rail for easy access and round knock-outs on all faces. Secure and efficient, it includes earth and neutral terminal bars at the top. .   Brand Lewden Current Rating 100A Dimensions 266mm(h) x 244mm(w) x 106mm(d) Door Type Top Hinged Guarantee 2 Years Incoming Device 100A Isolator IP Rating IP2XC Mounting Surface Number of Modules 11 Number of Outgoing Ways 7 Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted Yes Voltage Rating 230V Weight 2.61kg

Read more less

13 Usable Way Consumer Unit with Main Switch & Type 2 Surge Lewden PRO-R14W-R1S Supplied complete with Type 2 Surge Protection Kit Supplied complete with 100a Main Switch One Extra Module for installation of SPD New &  improved rane Extra Wiring Space Selection of round knockouts Dimensions 266 x 353 x 106mm Introducing the Lewden PRO-R14W-R1S, the ultimate consumer unit for your electrical needs. With 13 usable ways, a 100a main switch, and a Type 2 Surge Protection Kit, this unit offers impressive protection and convenience. The improved range and extra wiring space make installation a breeze, while the included extra module allows for easy installation of additional SPDs. Dimensions of 266 x 353 x 106mm make this unit compact yet powerful.   . Brand Lewden Current Rating 100A Dimensions 266mm(h) x 353mm(w) x 106mm(d) Door Type Top Hinged Guarantee 2 Years Incoming Device 100A Isolator IP Rating IP2XC Mounting Surface Number of Modules 16 Number of Outgoing Ways 13 Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted Yes Voltage Rating 230V Weight 4.03kg

Read more less

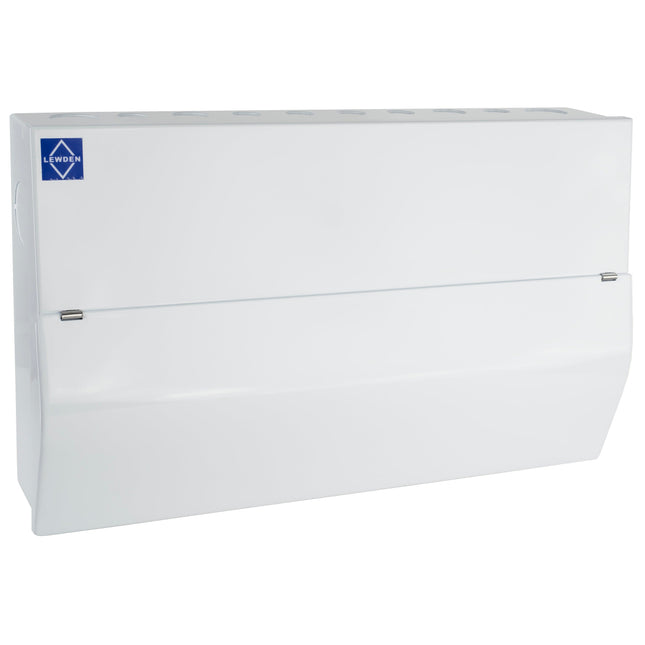

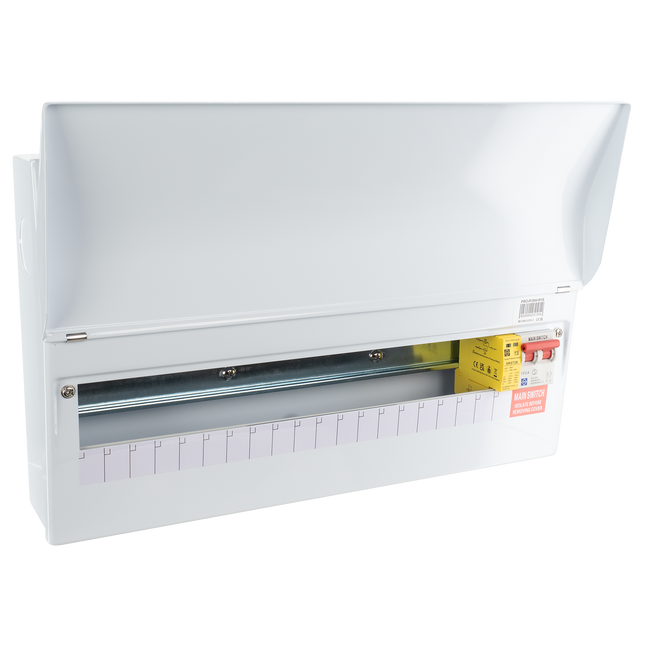

18 Way RCBO Consumer Unit with Surge Protection Lewden PRO-R19W-R1S 18 usable ways 100A main switch incomer Surge Protection Device with 32A MCB Earth and neutral terminal bars at the top Removable and raised DIN rail Round knock-outs on all faces Upgrade your electrical system with the Lewden PRO-R19W-R1S, a 18-way RCBO consumer unit with surge protection for added safety. Featuring a 100A main switch incomer, 32A MCB surge protection device, and removable and raised DIN rail, this unit offers versatile options for earth and neutral terminal bars and round knock-outs on all faces. . Brand Lewden Current Rating 100A Dimensions 266mm(h) x 443mm(w) x 106mm(d) Door Type Top Hinged Guarantee 2 Years Incoming Device 100A Isolator IP Rating IP2XC Mounting Surface Number of Modules 21 Number of Outgoing Ways 18 Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted Yes Voltage Rating 230V Weight 5.30kg

Read more less

9 Way RCBO Consumer Unit with Surge Protection Lewden PRO-R10W-R1S 9 usable ways 100A main switch incomer Surge Protection Device with 32A MCB Earth and neutral terminal bars at the top Removable and raised DIN rail Round knock-outs on all faces The Lewden PRO-R10W-R1S offers 9 usable ways, with a 100A main switch incomer for optimal performance. This consumer unit also includes a Surge Protection Device with a 32A MCB, and features removable and raised DIN rail with round knock-outs on all faces for easy installation. Equipped with earth and neutral terminal bars at the top. . Brand Lewden Current Rating 100A Dimensions 266mm(h) x 281mm(w) x 106mm(d) Door Type Top Hinged Guarantee 2 Years Incoming Device 100A Isolator IP Rating IP2XC Mounting Surface Number of Modules 13 Number of Outgoing Ways 9 Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted Yes Voltage Rating 230V Weight 3.47kg

Read more less

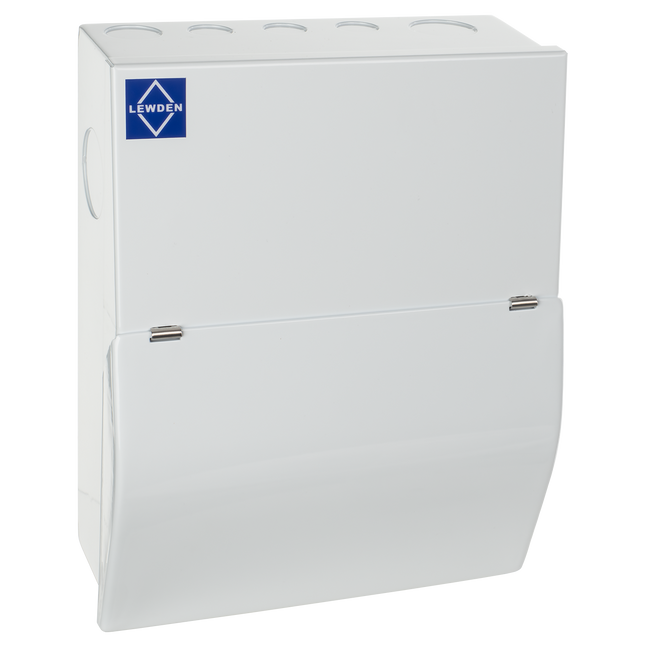

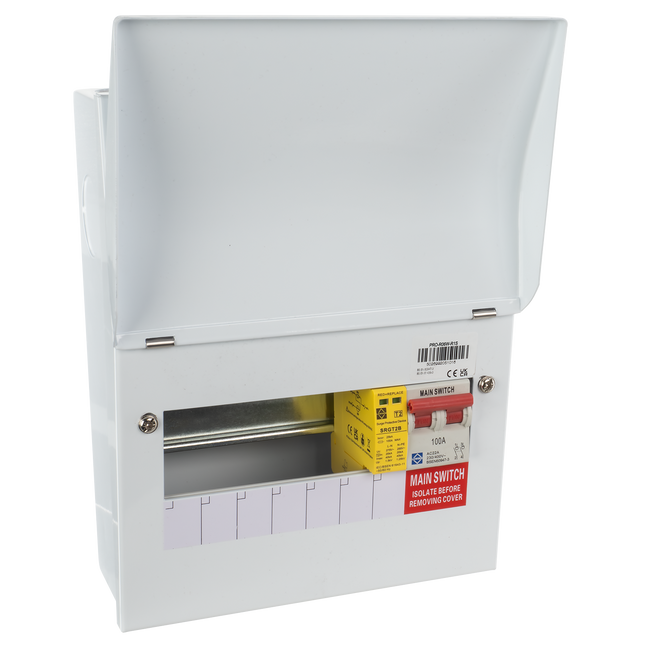

5 Way RCBO Consumer Unit with Surge Protection Lewden PRO-R06W-R1S 5 usable ways 100A main switch incomer Surge Protection Device with 32A MCB Earth and neutral terminal bars at the top Removable and raised DIN rail Round knock-outs on all faces Introducing the Lewden PRO-R06W-R1S 5 Way RCBO Consumer Unit, equipped with a 100A main switch incomer and surge protection device with 32A MCB. Designed with removable and raised DIN rail, round knock-outs on all faces, and earth and neutral terminal bars at the top for convenience. . Brand Lewden Current Rating 100A Dimensions 266mm(h) x 210mm(w) x 106mm(d) Door Type Top Hinged Guarantee 2 Years Incoming Device 100A Isolator Mounting Surface Number of Modules 9 Number of Outgoing Ways 5 Standards BS EN 60947-3, BS EN 61439-3 Surge Protection Fitted Yes Voltage Rating 230V Weight 2.63kg

Read more less
