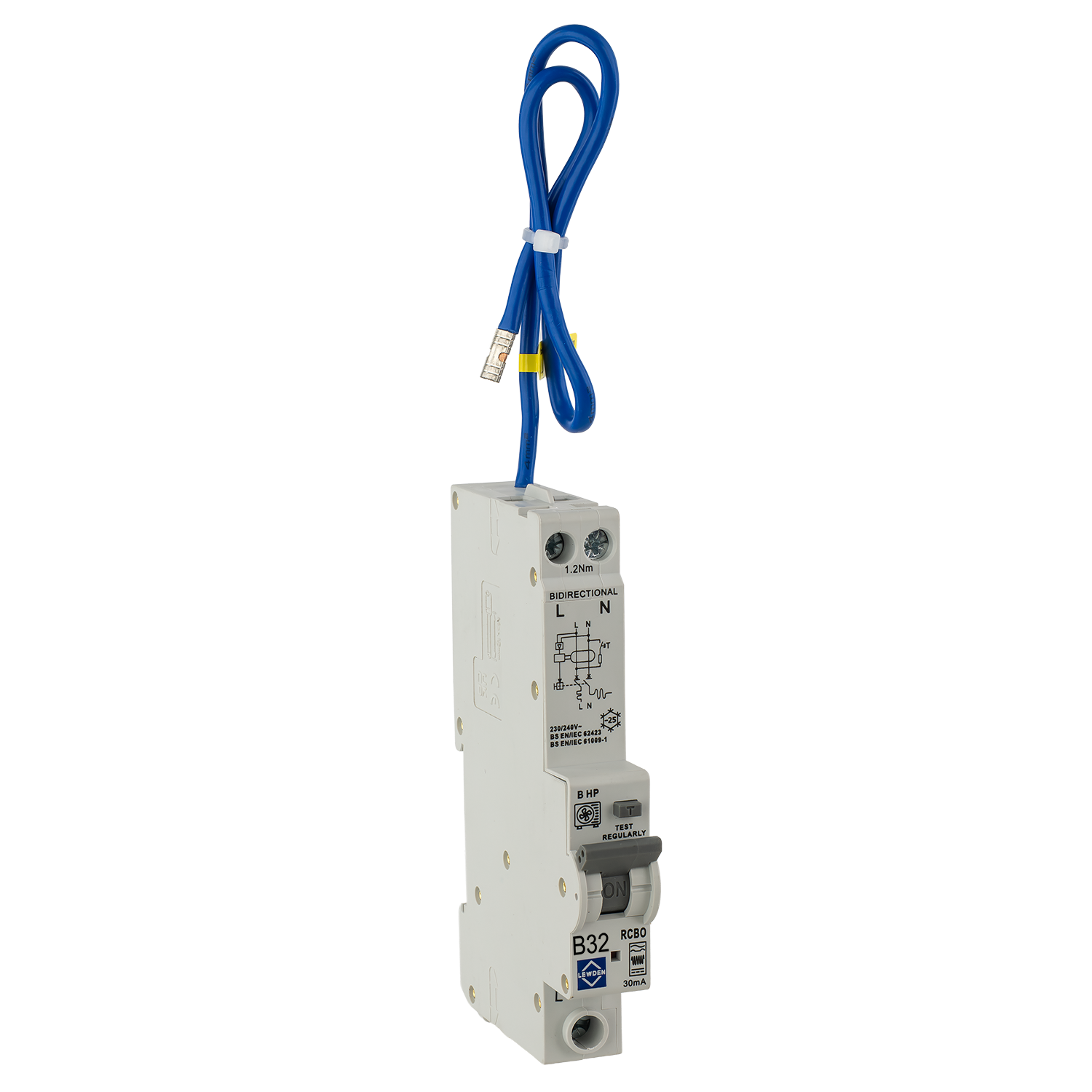

Lewden RCBO B Curve 6kA 30mA Type B - Heat Pump

Description

RCBO B Curve 6kA 30mA Type B - Heat Pump

Lewden

  • Type B
  • 6kA breaking capacity
  • 30mA sensitivity
  • Detects DC fault currents
  • High frequency operation (20kHz+)
  • Ideal for heat pumps & EV charging
  • TT earthing compatible

The Lewden Type B RCBO is designed to provide reliable electrical protection for modern installations, including heat pumps and EV charging systems. Featuring a B Curve characteristic, 6kA breaking capacity and 30mA residual current sensitivity, it combines overcurrent and earth leakage protection in one compact device. Advanced Type B technology detects AC, pulsating DC and smooth DC fault currents, providing enhanced protection for equipment using inverter technology. With high-frequency operation above 20kHz and compatibility with TT earthing systems, this RCBO is an excellent choice for heat pump installations, EV chargers and other applications requiring dependable Type B electrical protection.

.


Brand Lewden
Type (RCD Class) B
Dimensions (H) 118mm x (W) 18mm
Frequency 50/60Hz
Guarantee 1 Year
Incoming Terminal Capacity 16mm²
Mounting DIN Rail
Number of Modules 1
Number of Poles 2
Outgoing Terminal Capacity 16mm²
Short Circuit Rating 6kA
Tripping Characteristics B Curve
Tripping Sensitivity 30mA
Voltage Rating 230V / 400V

Read more

Lewden RCBO B Curve 6kA 30mA Type B - Heat Pump

Product form

SKU: RCBO-B16/30/1HP

RCBO B Curve 6kA 30mA Type B - Heat Pump Lewden Type B 6kA breaking capacity 30mA sensitivity Detects DC... Read more

£126.31 ex VAT £151.57 inc VAT

Available 1-3 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification


    Brand Lewden
    Type (RCD Class) B
    Dimensions (H) 118mm x (W) 18mm
    Frequency 50/60Hz
    Guarantee 1 Year
    Incoming Terminal Capacity 16mm²
    Mounting DIN Rail
    Number of Modules 1
    Number of Poles 2
    Outgoing Terminal Capacity 16mm²
    Short Circuit Rating 6kA
    Tripping Characteristics B Curve
    Tripping Sensitivity 30mA
    Voltage Rating 230V / 400V
      Downloads

    Description

    RCBO B Curve 6kA 30mA Type B - Heat Pump

    Lewden

    • Type B
    • 6kA breaking capacity
    • 30mA sensitivity
    • Detects DC fault currents
    • High frequency operation (20kHz+)
    • Ideal for heat pumps & EV charging
    • TT earthing compatible

    The Lewden Type B RCBO is designed to provide reliable electrical protection for modern installations, including heat pumps and EV charging systems. Featuring a B Curve characteristic, 6kA breaking capacity and 30mA residual current sensitivity, it combines overcurrent and earth leakage protection in one compact device. Advanced Type B technology detects AC, pulsating DC and smooth DC fault currents, providing enhanced protection for equipment using inverter technology. With high-frequency operation above 20kHz and compatibility with TT earthing systems, this RCBO is an excellent choice for heat pump installations, EV chargers and other applications requiring dependable Type B electrical protection.

    .


    Brand Lewden
    Type (RCD Class) B
    Dimensions (H) 118mm x (W) 18mm
    Frequency 50/60Hz
    Guarantee 1 Year
    Incoming Terminal Capacity 16mm²
    Mounting DIN Rail
    Number of Modules 1
    Number of Poles 2
    Outgoing Terminal Capacity 16mm²
    Short Circuit Rating 6kA
    Tripping Characteristics B Curve
    Tripping Sensitivity 30mA
    Voltage Rating 230V / 400V

    Read more

    New! Heat Pump Consumer Units

    Check out our New range of Heat Pump Consumer Units.

    Shop now
