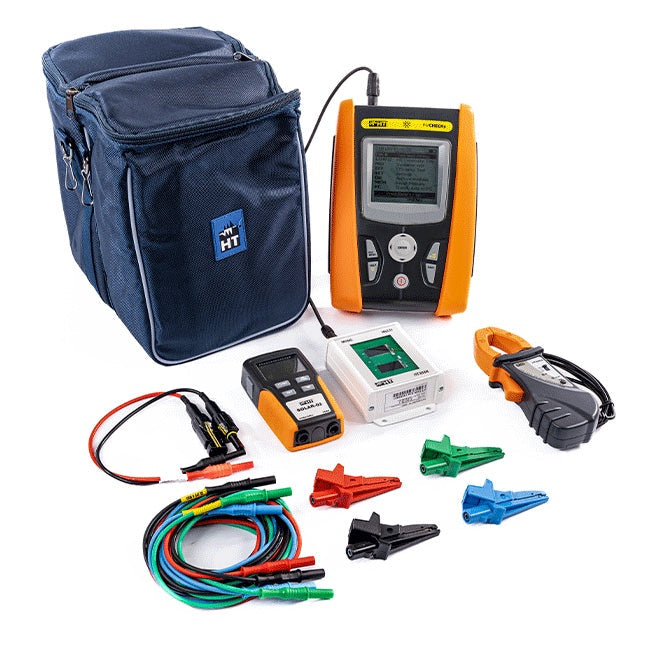

TIS PVCHECKS ULTIMATE Multifunction Solar Commissioning Tester with Reference Cell & Irradiance Meter

Description

TIS Multifunction Solar Commissioning Tester with Reference Cell & Irradiance Meter

PVCHECKS ULTIMATE

  • Maintenance of photovoltaic system
  • Continuity of protective conductors with test current 200mA
  • Insulation measurement with test voltage 250,500 and 1000VDC
  • Open-circuit voltage (VOC) measurement up to 1000V DC
  • Short-circuit current (ISC) measurement up to 15A DC
  • DC voltage - DC current - DC power measurement
  • Measurement of irradiation [W/m2] through reference cell HT304N
  •  Environmental and photovoltaic module temperature measurement through PT300N probe
  • Use of compensation relationships Cells/Environment on Pdc
  • Measurements always compared to the values declared by the module’s manufacturer
  • Please NOTE ! the PVCHECKS will not test N-TYPE Technology Solar PV Modules for this type of panel the PVCHECKS PRO & PRO PLUS models will be required

The TIS PVCHECKSULTIMATE is the ultimate tool for maintenance of photovoltaic systems. With features such as continuity and insulation measurement, open-circuit and short-circuit current measurement, and environmental and module temperature measurement, this multifunction solar commissioning tester ensures accurate results. It also includes a reference cell for irradiation measurement, using compensation relationships for precise Pdc comparisons. Trust in the TIS PVCHECKSULTIMATE for reliable and efficient testing.


.



Battery Size
 AA
Brand Test Instrument Solutions
Display Type
 LCD
Dimensions 235x165x75mm
Guarantee 1 Year

Read more

TIS PVCHECKS ULTIMATE Multifunction Solar Commissioning Tester with Reference Cell & Irradiance Meter

Product form

SKU: PVCHECKS ULTIMATE

TIS Multifunction Solar Commissioning Tester with Reference Cell & Irradiance Meter PVCHECKS ULTIMATE Maintenance of photovoltaic system Continuity of protective... Read more

£2,078.79 ex VAT £2,494.55 inc VAT

Available 1 - 2 working days

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification



    Battery Size
    		 AA
    Brand Test Instrument Solutions
    Display Type
    		 LCD
    Dimensions 235x165x75mm
    Guarantee 1 Year
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    TIS Multifunction Solar Commissioning Tester with Reference Cell & Irradiance Meter

    PVCHECKS ULTIMATE

    • Maintenance of photovoltaic system
    • Continuity of protective conductors with test current 200mA
    • Insulation measurement with test voltage 250,500 and 1000VDC
    • Open-circuit voltage (VOC) measurement up to 1000V DC
    • Short-circuit current (ISC) measurement up to 15A DC
    • DC voltage - DC current - DC power measurement
    • Measurement of irradiation [W/m2] through reference cell HT304N
    •  Environmental and photovoltaic module temperature measurement through PT300N probe
    • Use of compensation relationships Cells/Environment on Pdc
    • Measurements always compared to the values declared by the module’s manufacturer
    • Please NOTE ! the PVCHECKS will not test N-TYPE Technology Solar PV Modules for this type of panel the PVCHECKS PRO & PRO PLUS models will be required

    The TIS PVCHECKSULTIMATE is the ultimate tool for maintenance of photovoltaic systems. With features such as continuity and insulation measurement, open-circuit and short-circuit current measurement, and environmental and module temperature measurement, this multifunction solar commissioning tester ensures accurate results. It also includes a reference cell for irradiation measurement, using compensation relationships for precise Pdc comparisons. Trust in the TIS PVCHECKSULTIMATE for reliable and efficient testing.


    .



    Battery Size
    		 AA
    Brand Test Instrument Solutions
    Display Type
    		 LCD
    Dimensions 235x165x75mm
    Guarantee 1 Year
