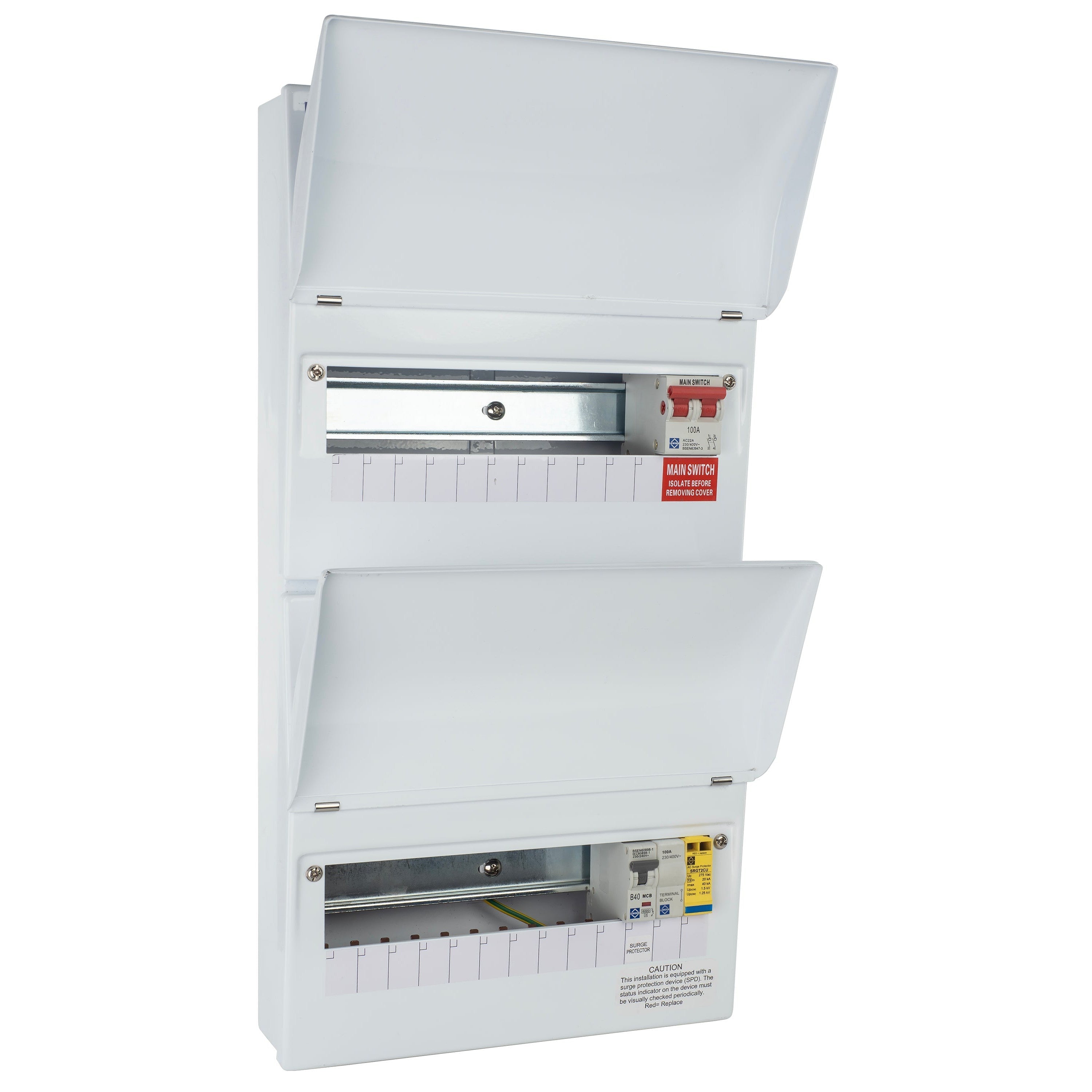

Lewden PRO-R22W-R1S 11+10 Useable Way Dual Row Consumer Unit with SPD

Description

11+10 Useable Way Dual Row Consumer Unit with SPD

Lewden PRO-R22W-R1S

        • Equipped with 100A DP main switch and type 2 surge protection as standard.
        • Designed for use with Lewden RCBOs and AFDD RCBOs.
        • Supplied with comb busbars and all interconnecting cables.
        • The enclosure is fully open between rows, providing significant cabling space.
        • A selection of round cable entry knockouts on top and bottom faces.
        • Large rectangular rear knockouts in four positions are designed for use with
        • Lewden cable grommets.
        • Retained front cover screws help to prevent loss during installation.
        • A neutral and earth bar above each row allows tidy and rationalised wiring of
          neutral and earth conductors.

        This Lewden PRO-R22W-R1S dual row consumer unit offers 11+10 useable ways and 100A DP main switch for efficient and organized wiring. Equipped with type 2 surge protection, it works perfectly with Lewden RCBOs and AFDD RCBOs. The fully open enclosure allows for easy cabling and the retained front cover screws prevent any loss during installation.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions 540mm(h) x 281mm(w) x 108mm(d)
        Door Type Top Hinged
        Guarantee 2 Years
        Incoming Device 100A Isolator
        Mounting Surface
        Number of Modules 21
        Standards BS EN 60947-3, BS EN 61439-3
        Surge Protection Fitted Yes
        Voltage Rating 230V
        Weight 6.63kg

        Read more

        Lewden PRO-R22W-R1S 11+10 Useable Way Dual Row Consumer Unit with SPD

        Product form

        SKU: PRO-R22W-R1S

        11+10 Useable Way Dual Row Consumer Unit with SPD Lewden PRO-R22W-R1S Equipped with 100A DP main switch and type 2... Read more

        Free pickup in our shop(s)

        £119.11 ex VAT £142.93 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions 540mm(h) x 281mm(w) x 108mm(d)
          Door Type Top Hinged
          Guarantee 2 Years
          Incoming Device 100A Isolator
          Mounting Surface
          Number of Modules 21
          Standards BS EN 60947-3, BS EN 61439-3
          Surge Protection Fitted Yes
          Voltage Rating 230V
          Weight 6.63kg
            Downloads

          Description

          11+10 Useable Way Dual Row Consumer Unit with SPD

          Lewden PRO-R22W-R1S

                • Equipped with 100A DP main switch and type 2 surge protection as standard.
                • Designed for use with Lewden RCBOs and AFDD RCBOs.
                • Supplied with comb busbars and all interconnecting cables.
                • The enclosure is fully open between rows, providing significant cabling space.
                • A selection of round cable entry knockouts on top and bottom faces.
                • Large rectangular rear knockouts in four positions are designed for use with
                • Lewden cable grommets.
                • Retained front cover screws help to prevent loss during installation.
                • A neutral and earth bar above each row allows tidy and rationalised wiring of
                  neutral and earth conductors.

                This Lewden PRO-R22W-R1S dual row consumer unit offers 11+10 useable ways and 100A DP main switch for efficient and organized wiring. Equipped with type 2 surge protection, it works perfectly with Lewden RCBOs and AFDD RCBOs. The fully open enclosure allows for easy cabling and the retained front cover screws prevent any loss during installation.

                .

                Brand Lewden
                Current Rating 100A
                Dimensions 540mm(h) x 281mm(w) x 108mm(d)
                Door Type Top Hinged
                Guarantee 2 Years
                Incoming Device 100A Isolator
                Mounting Surface
                Number of Modules 21
                Standards BS EN 60947-3, BS EN 61439-3
                Surge Protection Fitted Yes
                Voltage Rating 230V
                Weight 6.63kg

                Read more
