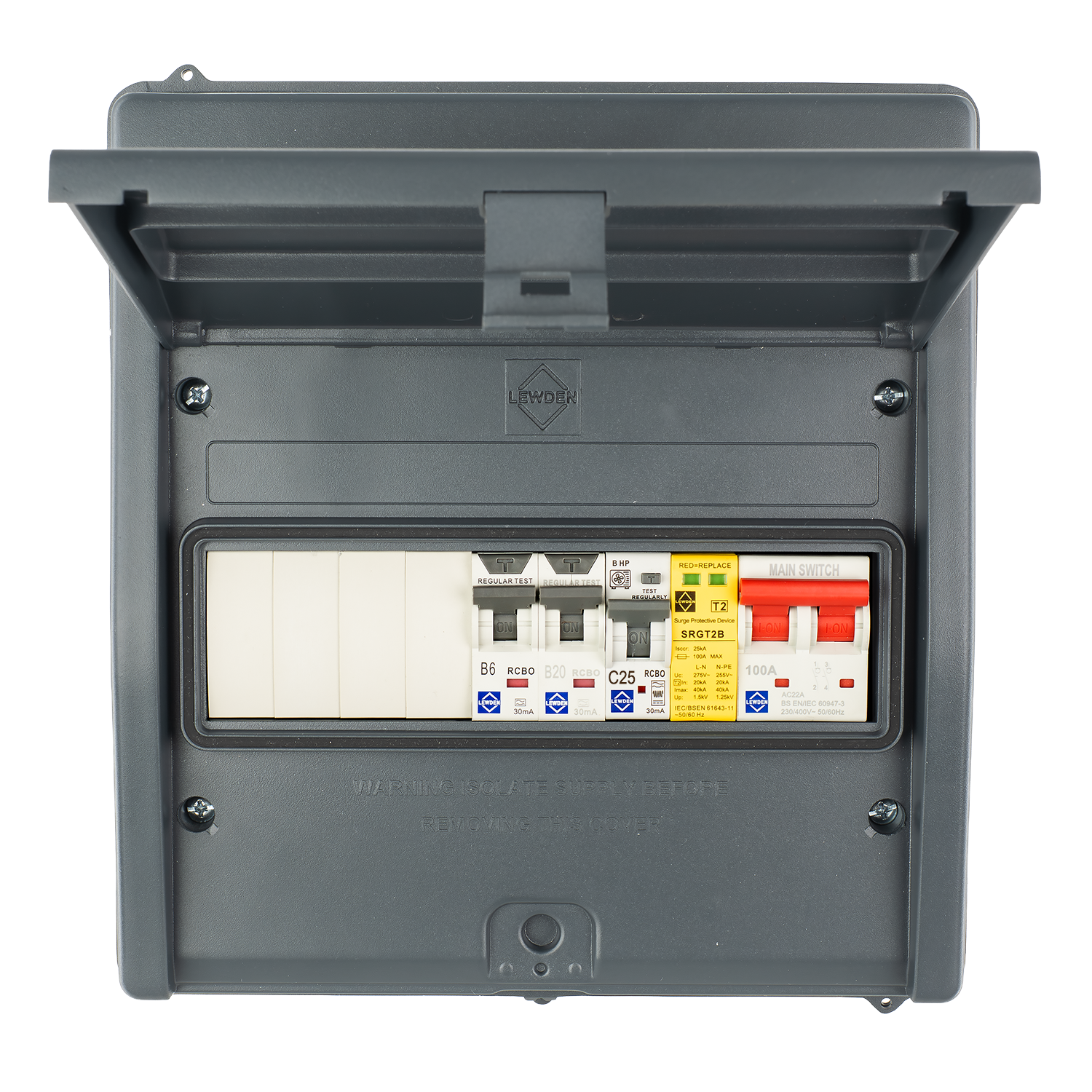

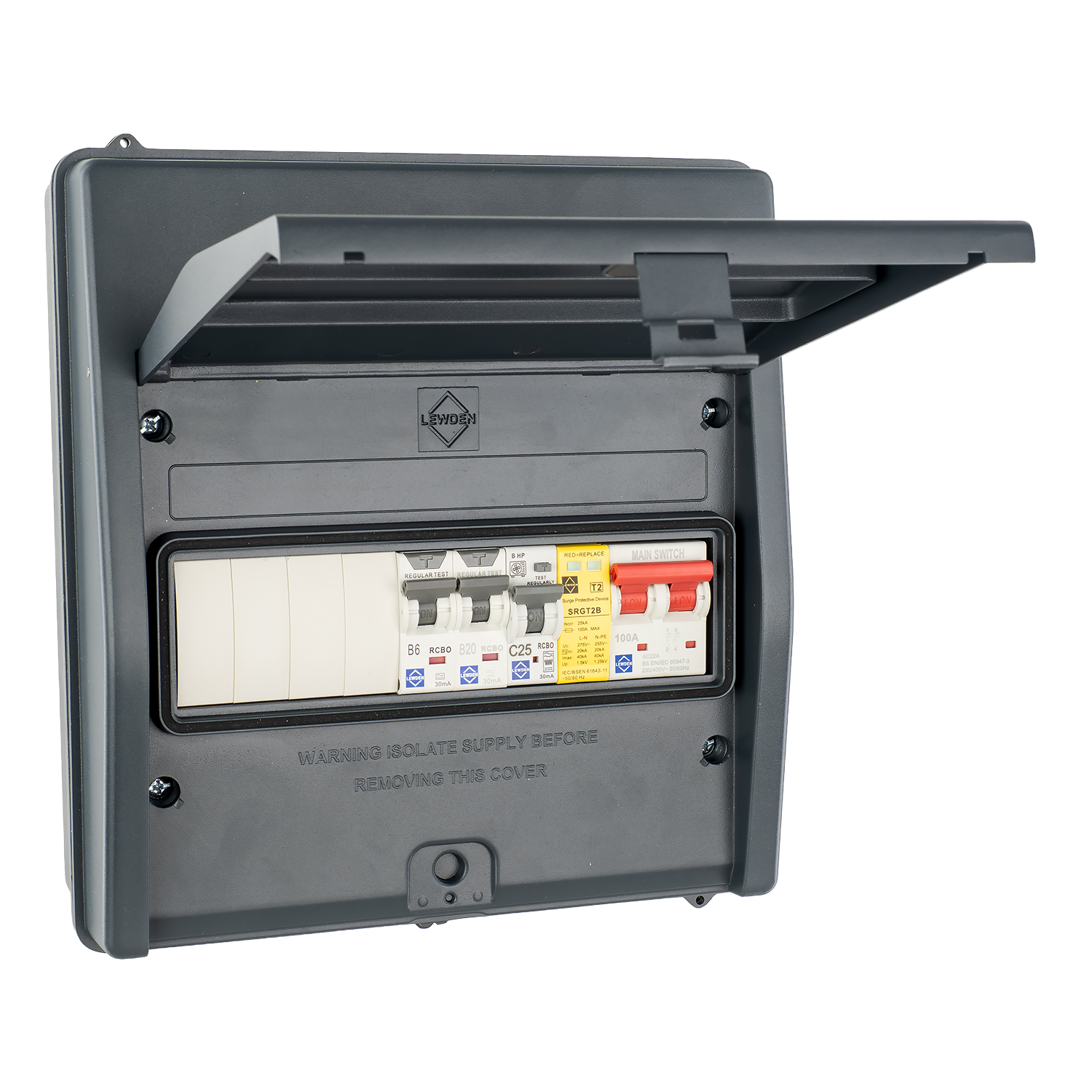

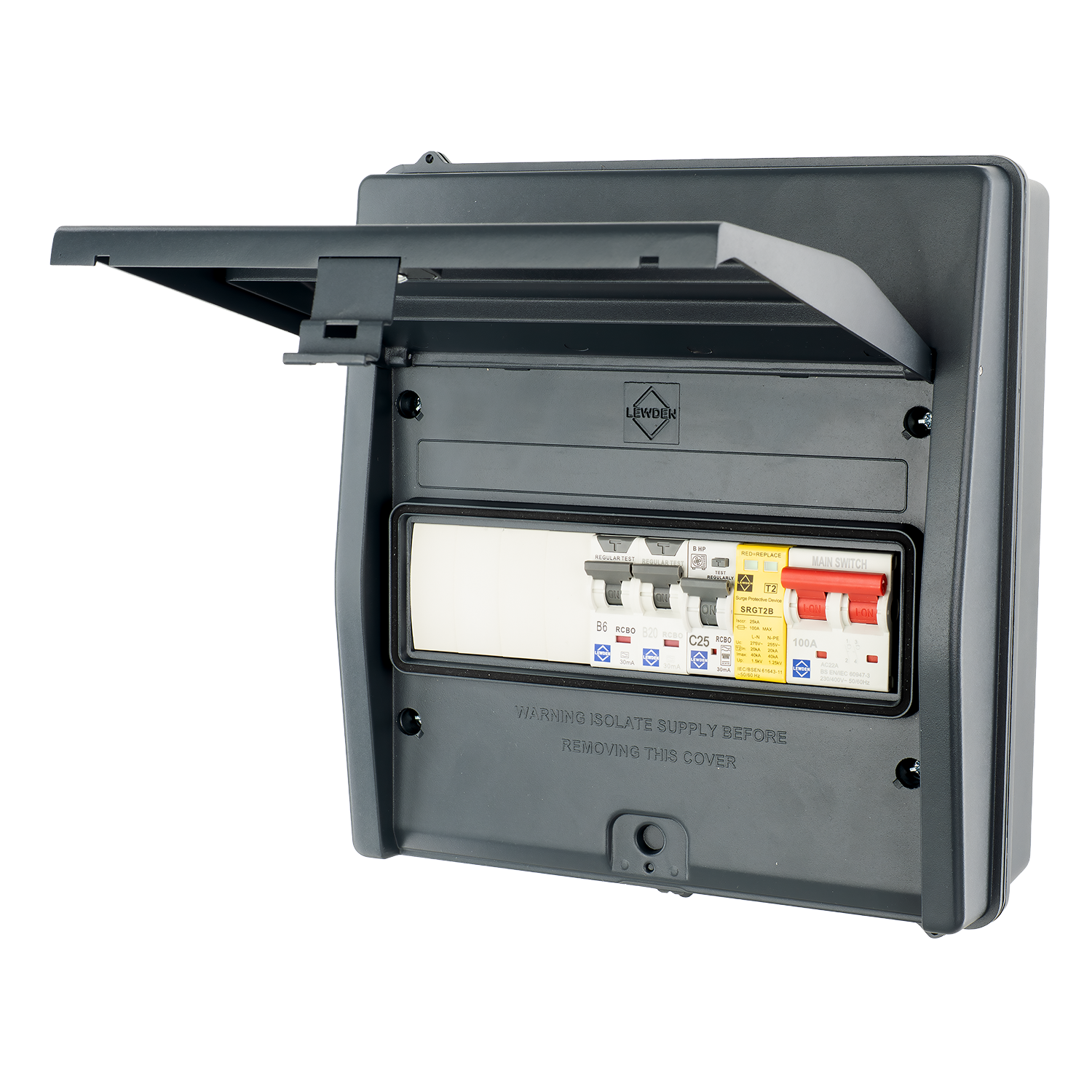

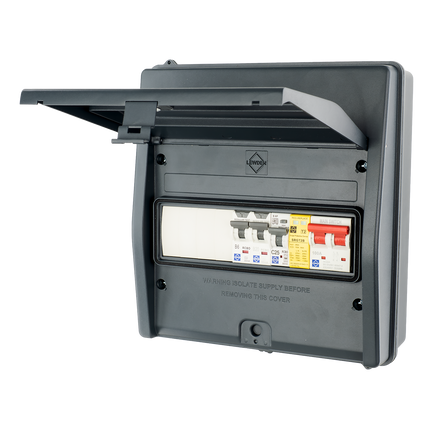

Lewden HPPO-07MG-AC25 IP65 7 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

Description

7 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

Lewden HPPO-07MG-AC25

        • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz

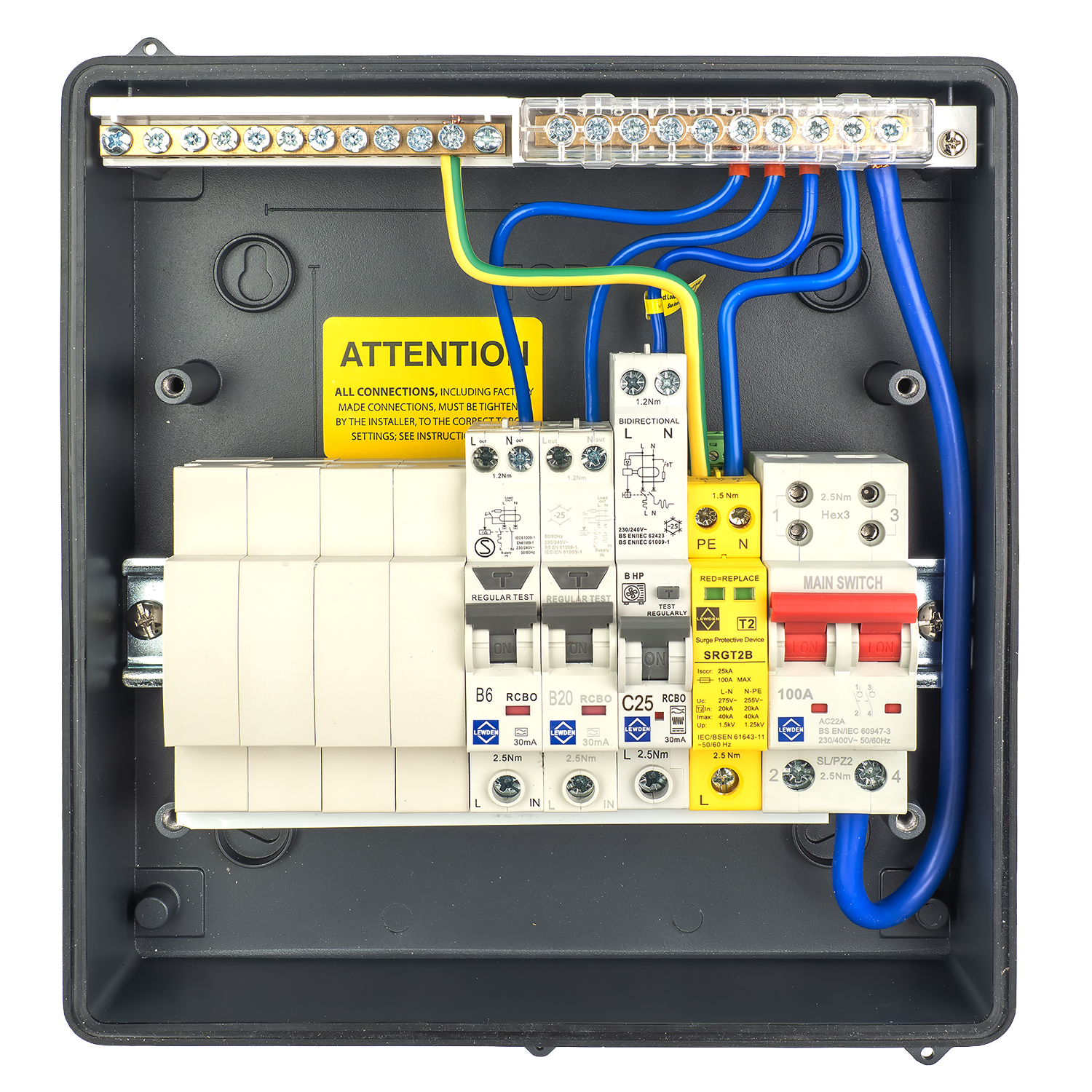

        • Prefitted with C25 Heat Pump RCBO, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        This 7 Way Air Source Heat Pump Consumer Unit provides a reliable, compact solution for modern ASHP installations. Designed for inverter-driven heat pumps operating at high frequencies, it includes a dedicated 16A Heat Pump RCBO, additional Type A RCBOs for controls and immersion heater circuits, and integrated Type 2 surge protection. The compact enclosure is ideal for space-restricted installations, while the 100A main switch ensures secure incoming connections. Spare ways provide flexibility for additional heat pump circuits, including integral heaters. Round knockouts simplify cable entry, glands, conduits and SWA termination, delivering a professional, regulation-compliant installation for heat pump systems.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)264mm x (W)240mm x (D)105mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 7
        Number of Modules 10
        Surge Protection Fitted Yes
        Voltage Rating 230V

        Read more

        Lewden HPPO-07MG-AC25 IP65 7 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

        Product form

        SKU: HPPO-07MG-AC25

        7 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD Lewden HPPO-07MG-AC25 Designed... Read more

        Free pickup in our shop(s)

        £256.56 ex VAT £307.87 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions (H)264mm x (W)240mm x (D)105mm
          Door Type Top Hinged
          Guarantee 1 Year
          Incoming Device 100A Isolator
          Number of Useable Ways 7
          Number of Modules 10
          Surge Protection Fitted Yes
          Voltage Rating 230V
            Downloads

          Description

          7 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

          Lewden HPPO-07MG-AC25

                • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz
                • Prefitted with C25 Heat Pump RCBO, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
                • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
                • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
                • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
                • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
                • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
                • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

                This 7 Way Air Source Heat Pump Consumer Unit provides a reliable, compact solution for modern ASHP installations. Designed for inverter-driven heat pumps operating at high frequencies, it includes a dedicated 16A Heat Pump RCBO, additional Type A RCBOs for controls and immersion heater circuits, and integrated Type 2 surge protection. The compact enclosure is ideal for space-restricted installations, while the 100A main switch ensures secure incoming connections. Spare ways provide flexibility for additional heat pump circuits, including integral heaters. Round knockouts simplify cable entry, glands, conduits and SWA termination, delivering a professional, regulation-compliant installation for heat pump systems.

                .

                Brand Lewden
                Current Rating 100A
                Dimensions (H)264mm x (W)240mm x (D)105mm
                Door Type Top Hinged
                Guarantee 1 Year
                Incoming Device 100A Isolator
                Number of Useable Ways 7
                Number of Modules 10
                Surge Protection Fitted Yes
                Voltage Rating 230V
