Lewden HPPO-05MG-1 IP65 5 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

Description

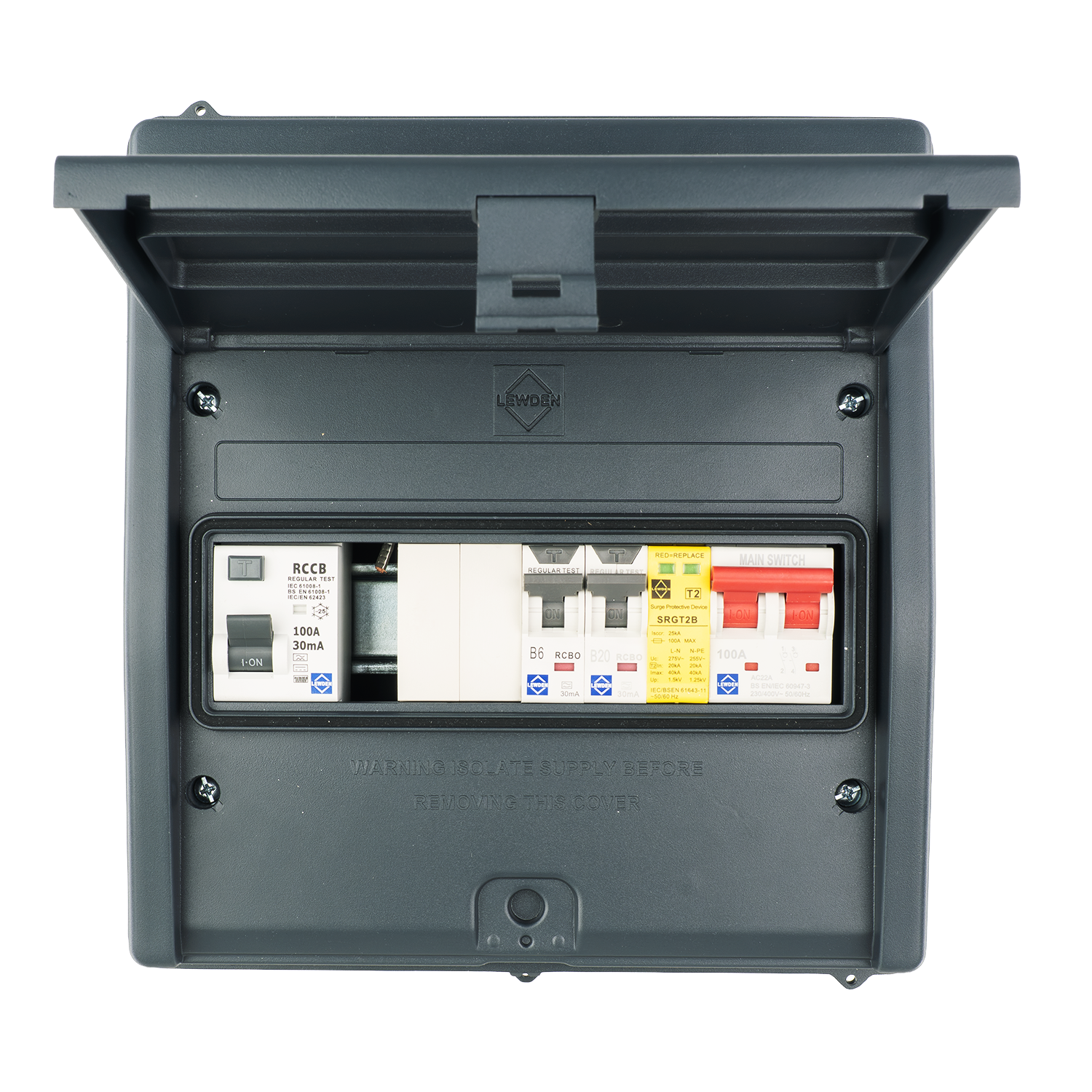

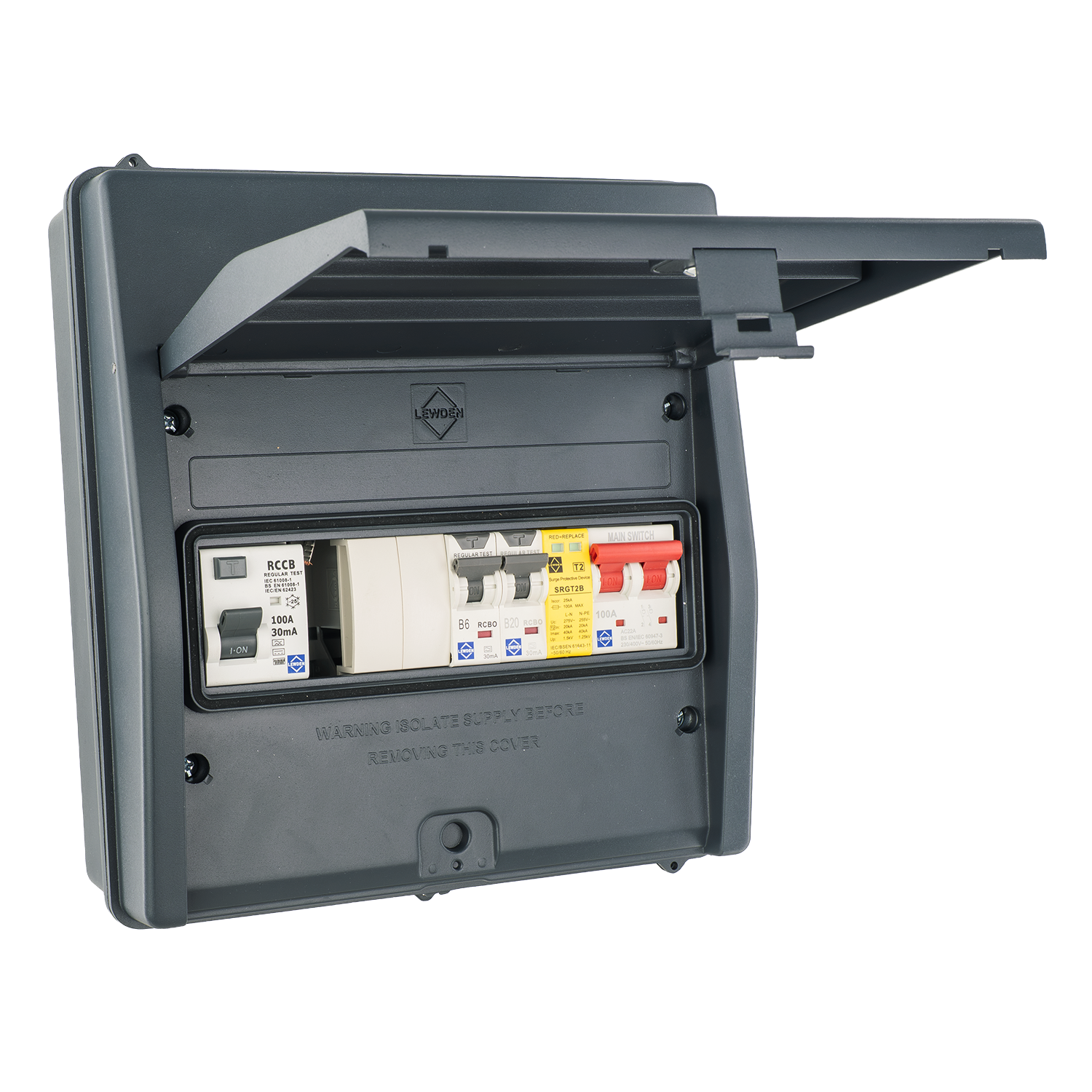

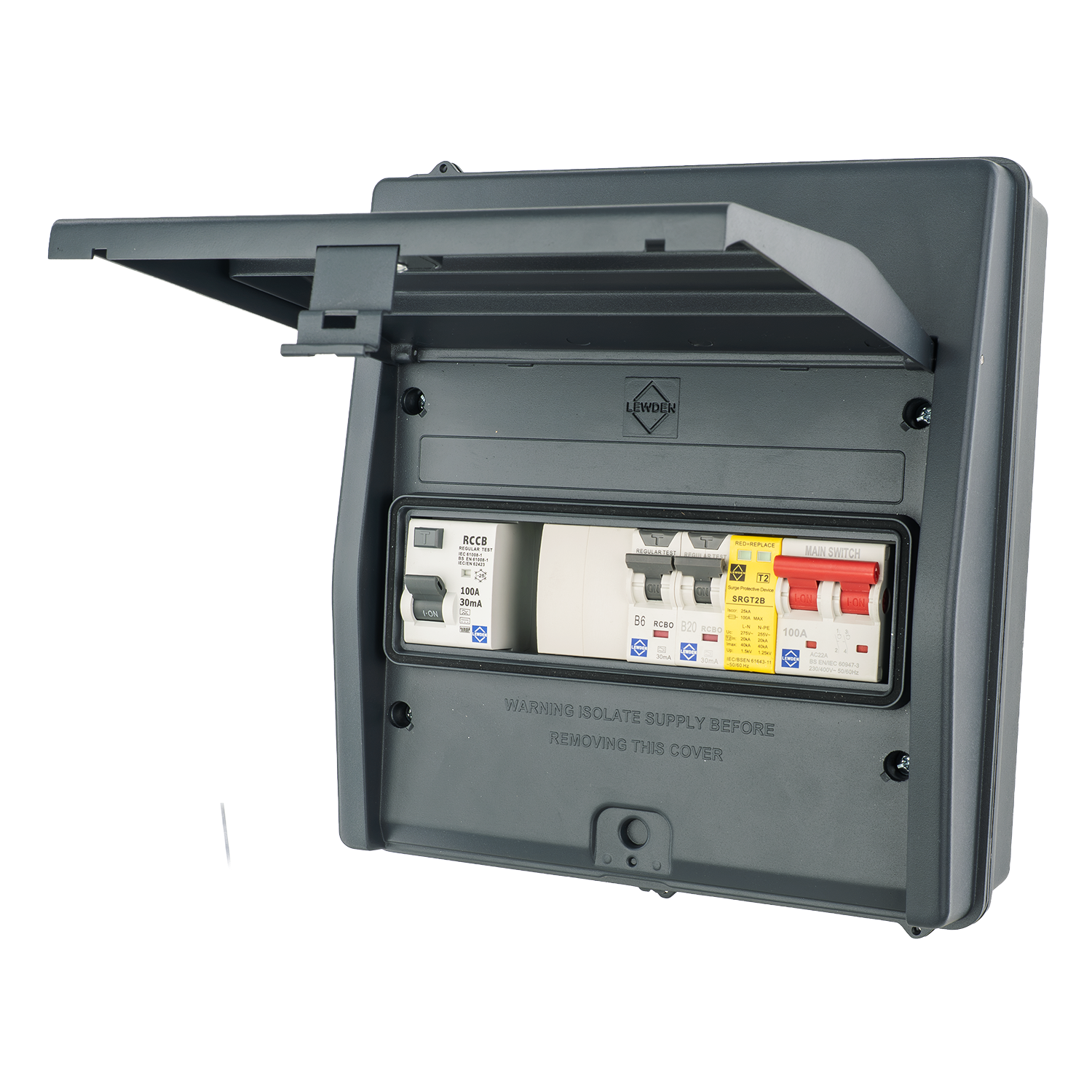

IP65 5 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

Lewden HPPO-05MG-1

        • Designed for use within ASHP Installations requiring Type B RCD protection.

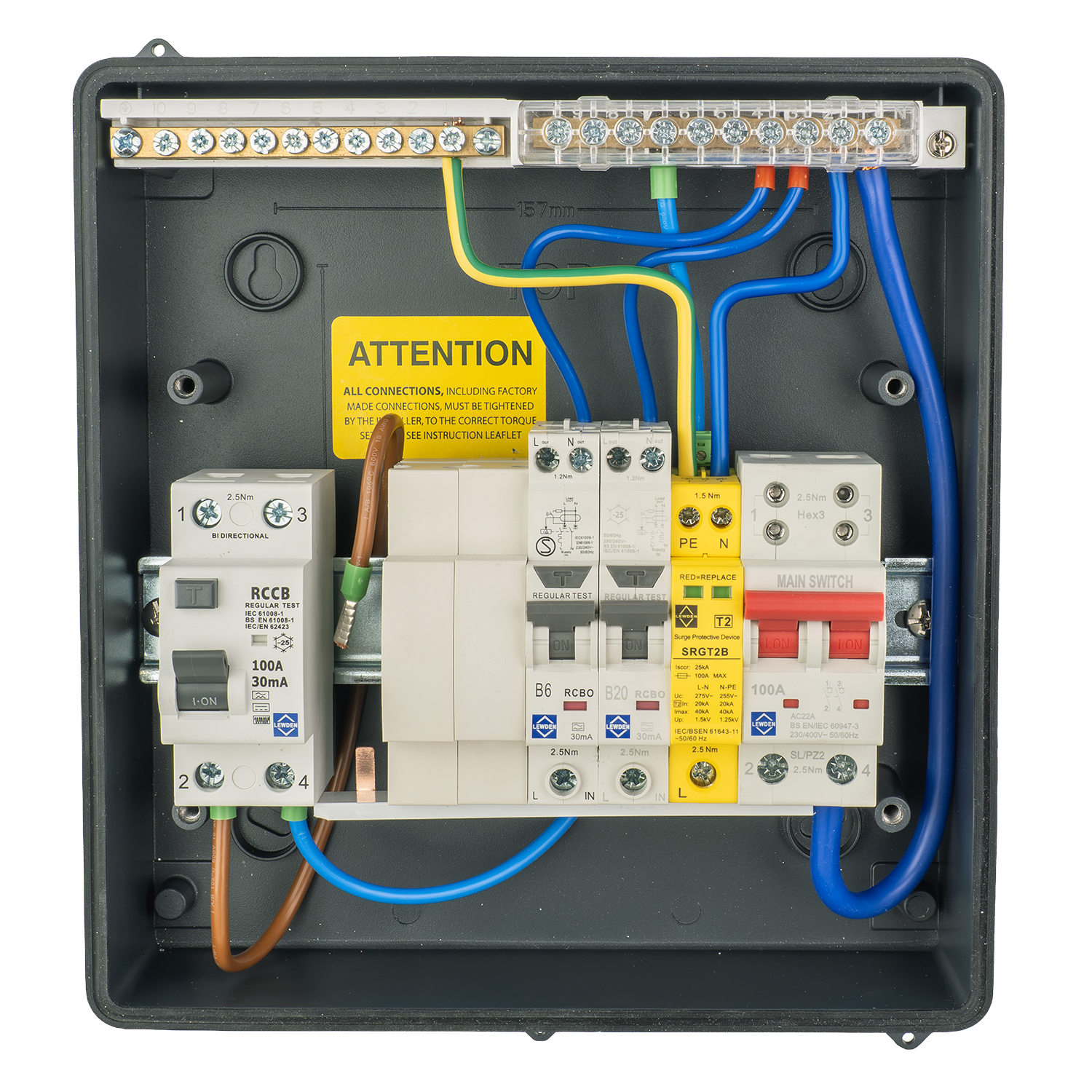

        • Prefitted with 100A Type B RCD, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • IP65 diecast alluminium enclosure suitable for external applications.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        This IP65 5 Way Air Source Heat Pump Consumer Unit provides a robust, reliable solution for modern ASHP installations requiring Type B RCD protection. Designed for indoor or outdoor applications, the durable diecast aluminium enclosure offers excellent protection against dust and water ingress. Supplied with a 100A Type B RCD, Type A RCBO protection and integrated Type 2 Surge Protection Device, it safeguards heat pump controls, immersion heaters and sensitive electronics. A 100A main switch provides secure incoming cable termination, while spare ways allow additional heat pump circuits. Round knockouts simplify installation with cable glands, conduit, grommets and SWA cables.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)264mm x (W)240mm x (D)105mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 5
        Number of Modules 10
        Surge Protection Fitted Yes
        Voltage Rating 230V

        Read more

        Lewden HPPO-05MG-1 IP65 5 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

        Product form

        SKU: HPPO-05MG-1

        IP65 5 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD Lewden... Read more

        Free pickup in our shop(s)

        £199.60 ex VAT £239.52 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions (H)264mm x (W)240mm x (D)105mm
          Door Type Top Hinged
          Guarantee 1 Year
          Incoming Device 100A Isolator
          Number of Useable Ways 5
          Number of Modules 10
          Surge Protection Fitted Yes
          Voltage Rating 230V
            Downloads

          Description

          IP65 5 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

          Lewden HPPO-05MG-1

                • Designed for use within ASHP Installations requiring Type B RCD protection.
                • Prefitted with 100A Type B RCD, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
                • IP65 diecast alluminium enclosure suitable for external applications.
                • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
                • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
                • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
                • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
                • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

                This IP65 5 Way Air Source Heat Pump Consumer Unit provides a robust, reliable solution for modern ASHP installations requiring Type B RCD protection. Designed for indoor or outdoor applications, the durable diecast aluminium enclosure offers excellent protection against dust and water ingress. Supplied with a 100A Type B RCD, Type A RCBO protection and integrated Type 2 Surge Protection Device, it safeguards heat pump controls, immersion heaters and sensitive electronics. A 100A main switch provides secure incoming cable termination, while spare ways allow additional heat pump circuits. Round knockouts simplify installation with cable glands, conduit, grommets and SWA cables.

                .

                Brand Lewden
                Current Rating 100A
                Dimensions (H)264mm x (W)240mm x (D)105mm
                Door Type Top Hinged
                Guarantee 1 Year
                Incoming Device 100A Isolator
                Number of Useable Ways 5
                Number of Modules 10
                Surge Protection Fitted Yes
                Voltage Rating 230V

                Read more
