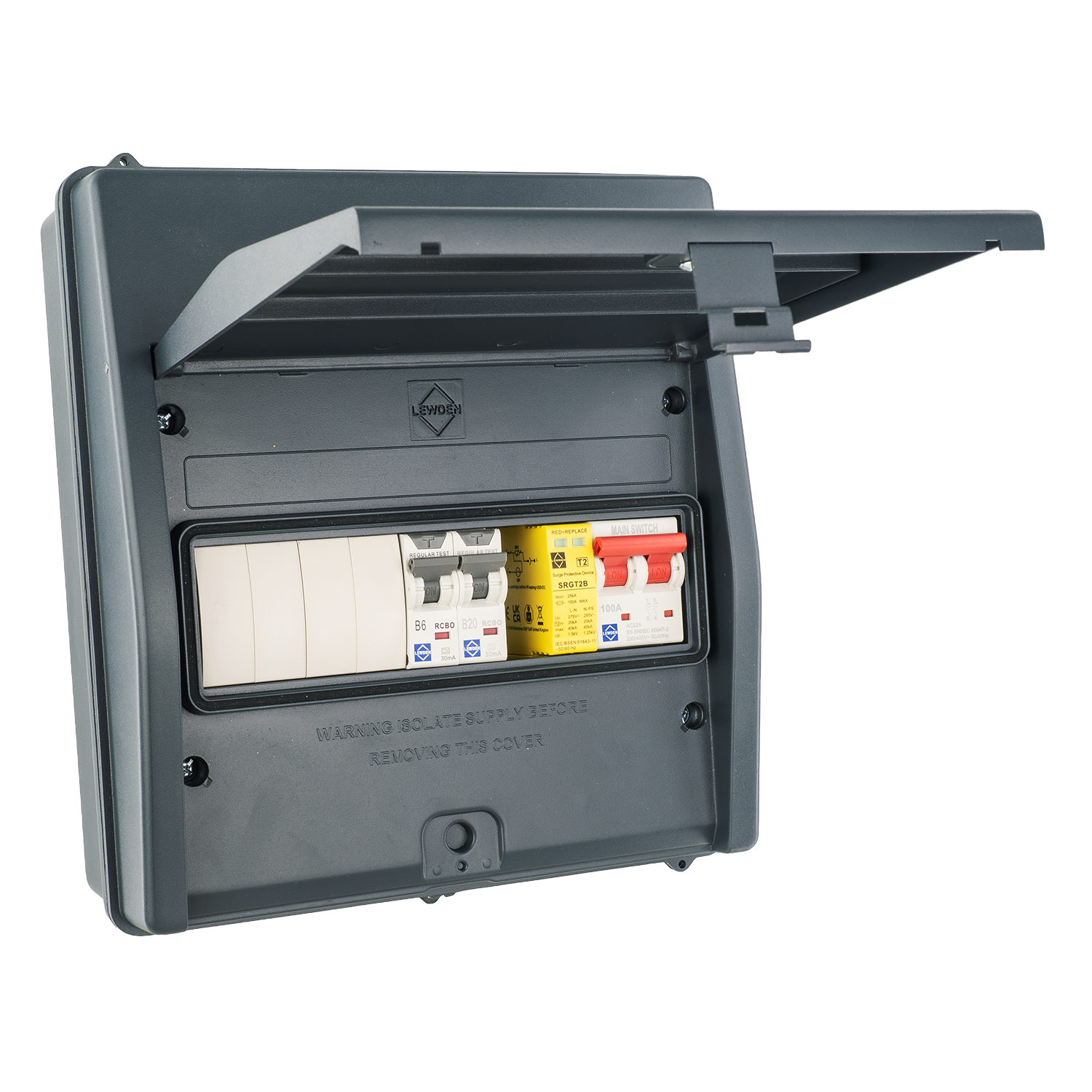

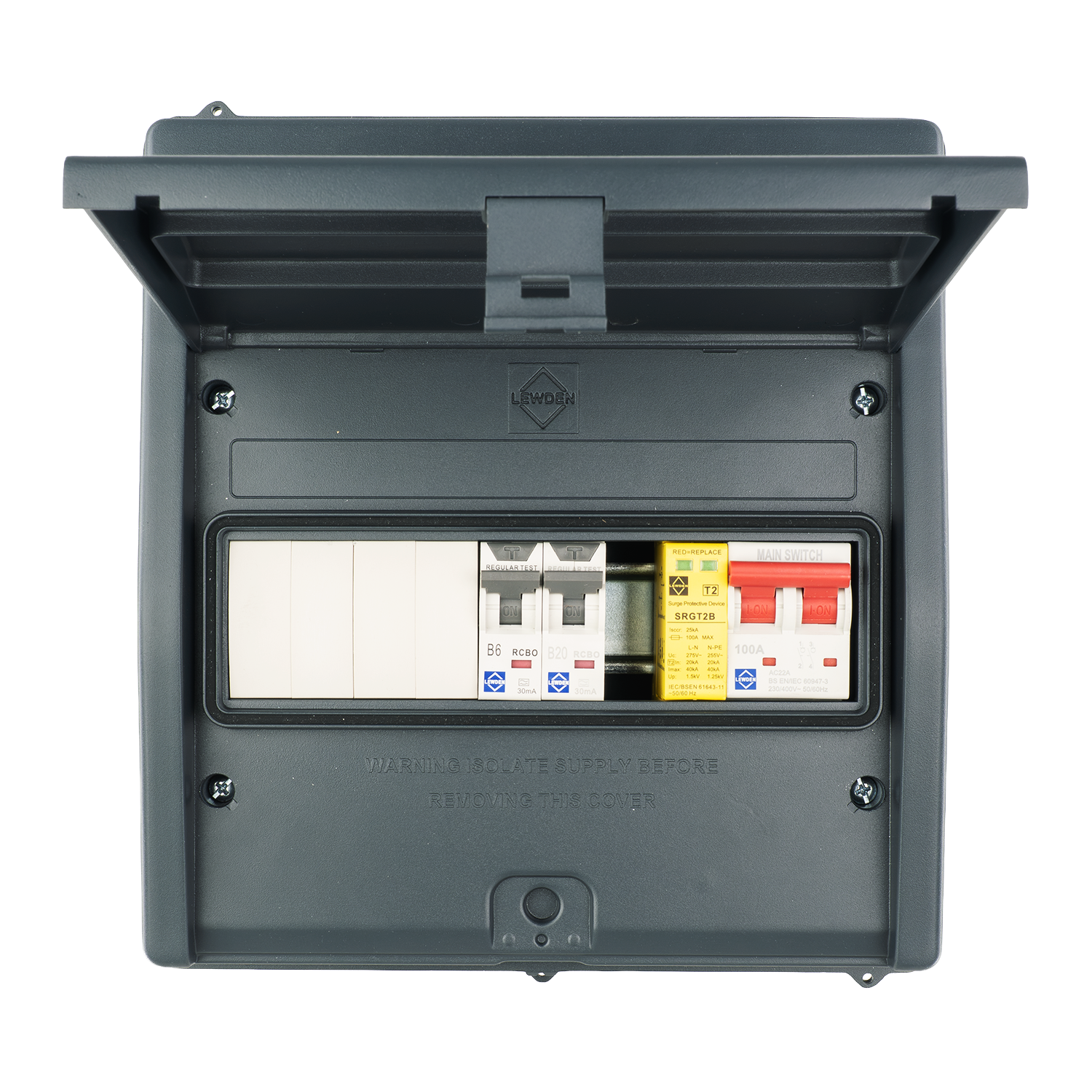

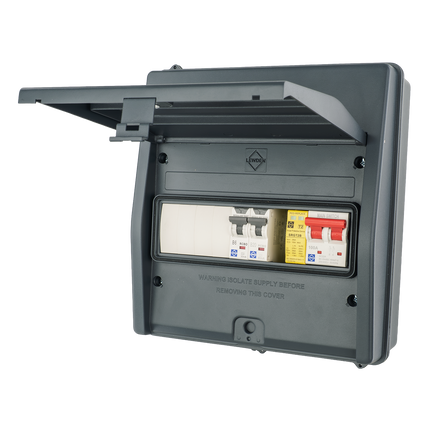

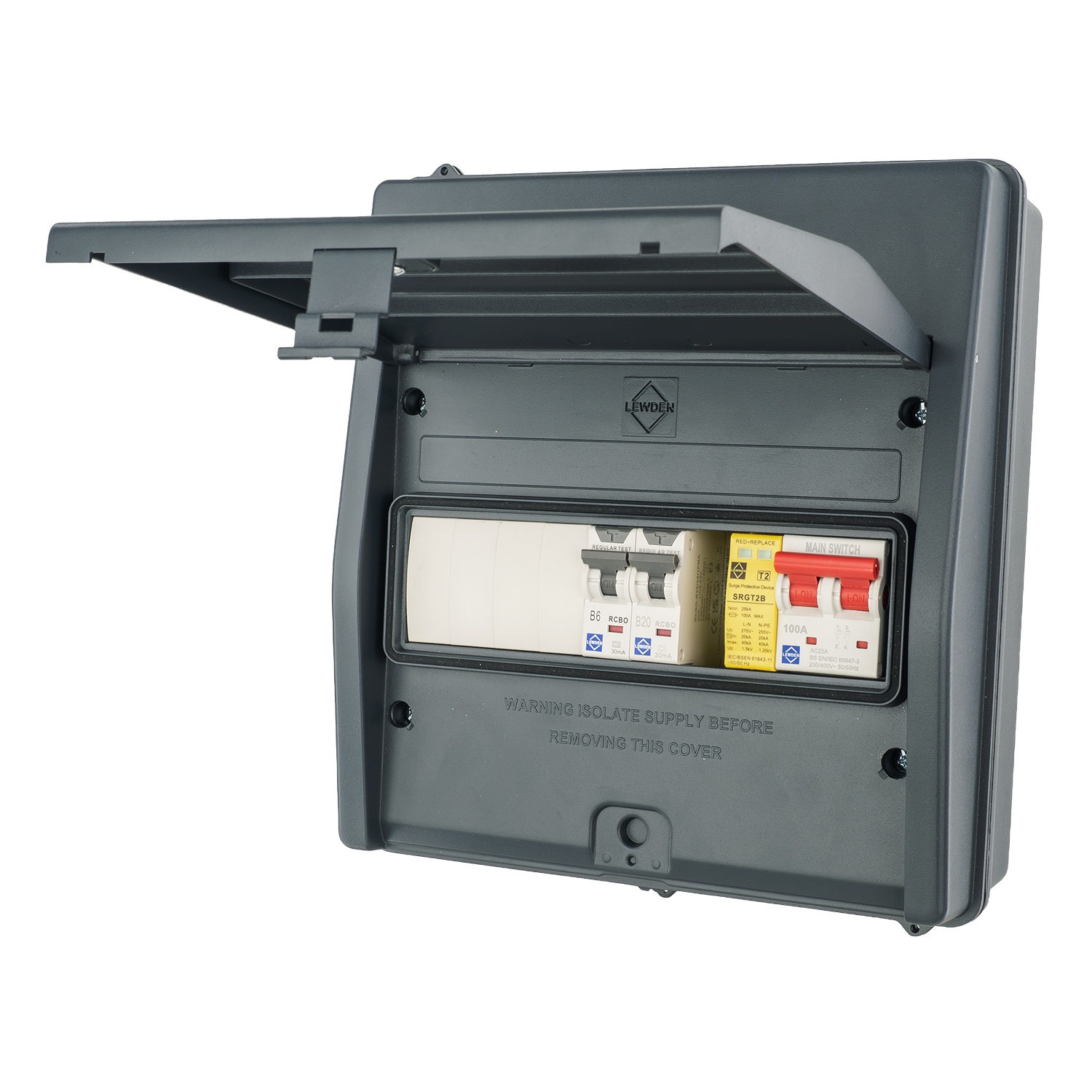

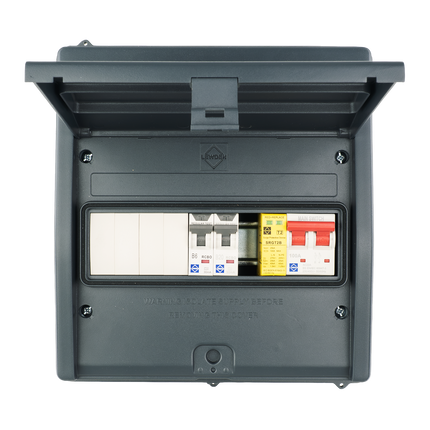

Lewden HPPO-07MG-A IP65 7 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD

Description

IP65 7 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD

Lewden HPPO-07MG-A

        • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz

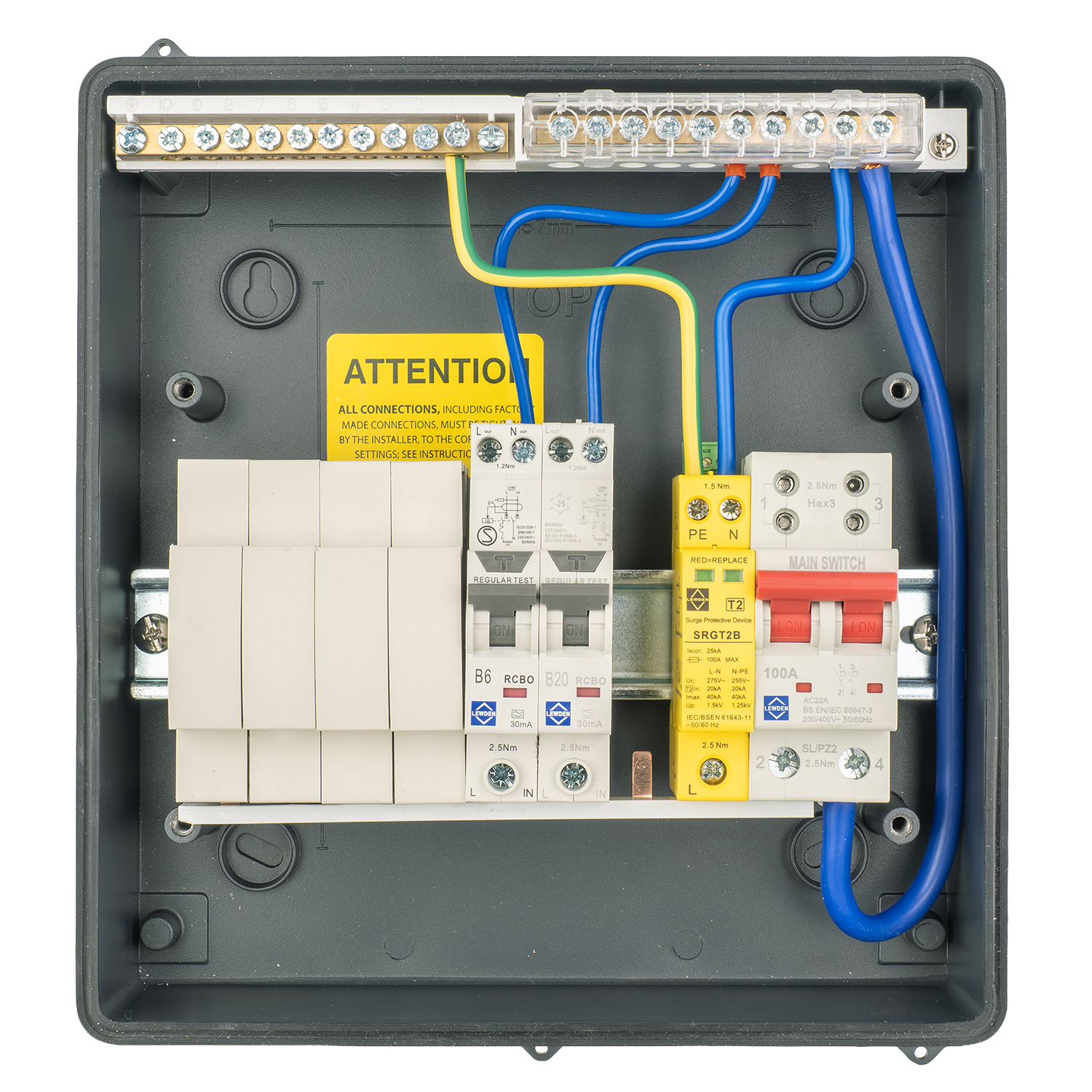

        • Prefitted with 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        The Lewden IP65 7 Way Air Source Heat Pump Consumer Unit is designed specifically for modern ASHP installations, including inverter-driven compressors operating at high frequencies. Supplied with 6A and 20A B Curve Type A RCBOs, it provides dedicated protection for controls and immersion heater circuits. The compact PRO enclosure is ideal for space-restricted installations, while the 100A main switch ensures secure incoming connections. Integrated Type 2 surge protection safeguards sensitive equipment against transient voltage spikes. With spare ways for additional heat pump circuits and practical round cable entry knockouts, this durable consumer unit provides a reliable, compliant ASHP electrical distribution solution.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)264mm x (W)240mm x (D)105mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 7
        Number of Modules 10
        Surge Protection Fitted Yes
        Voltage Rating 230V
