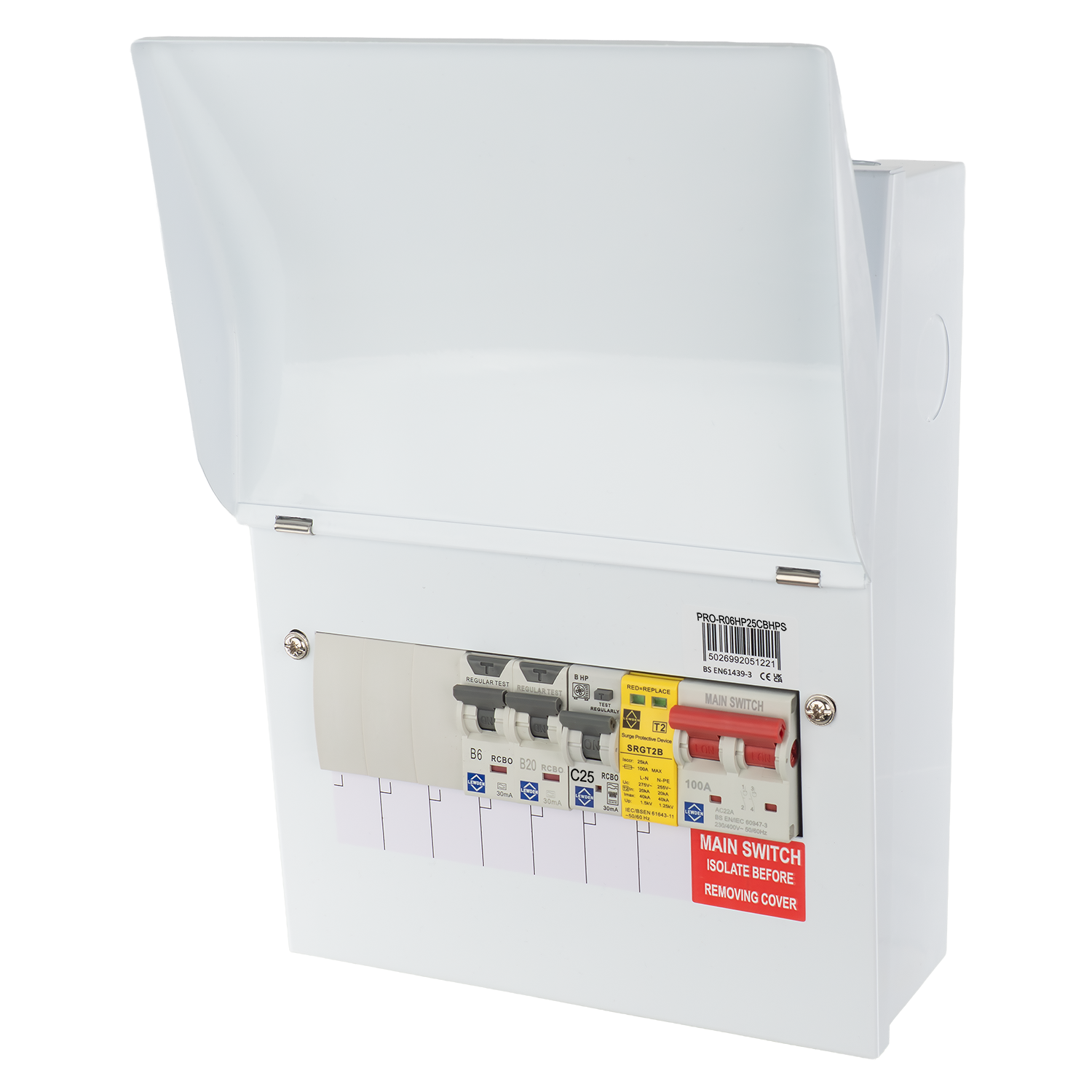

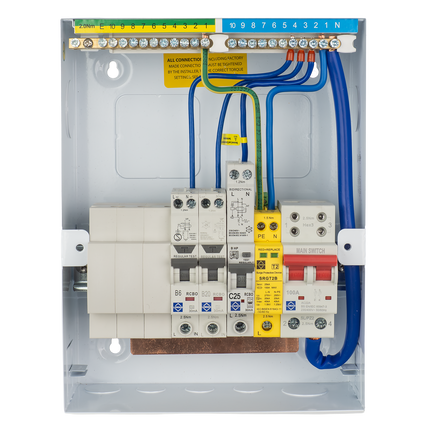

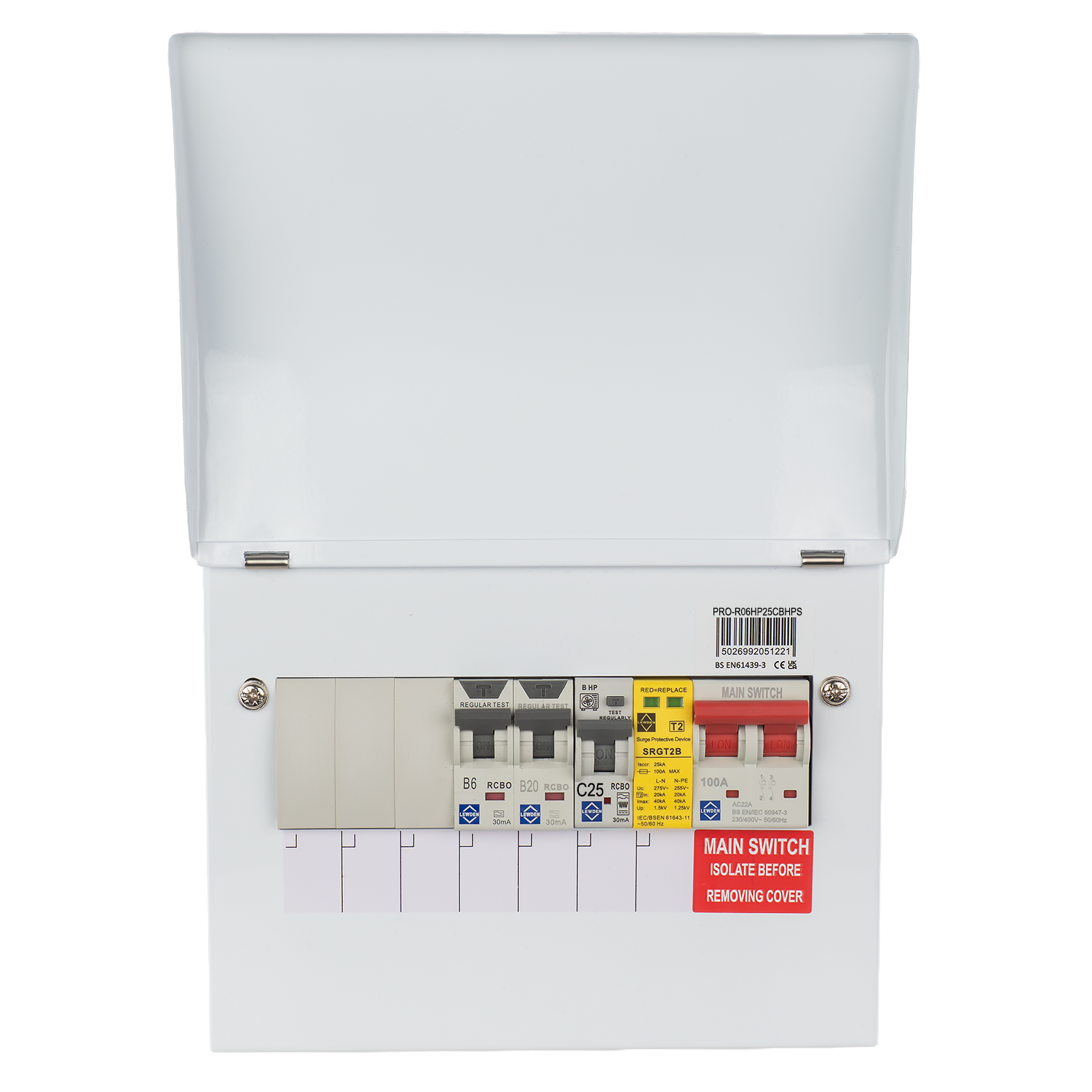

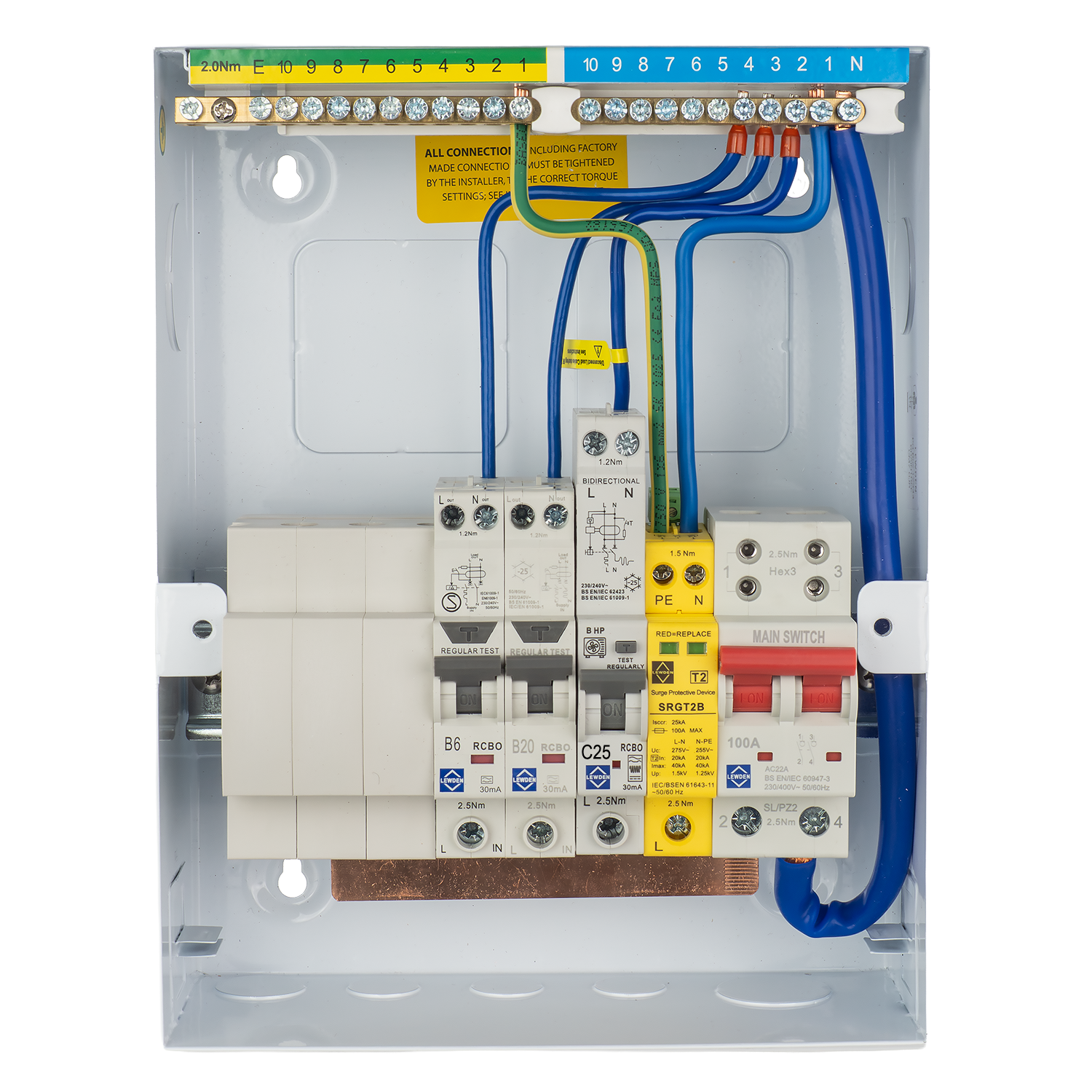

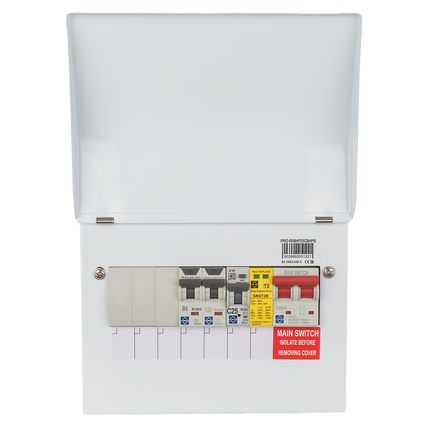

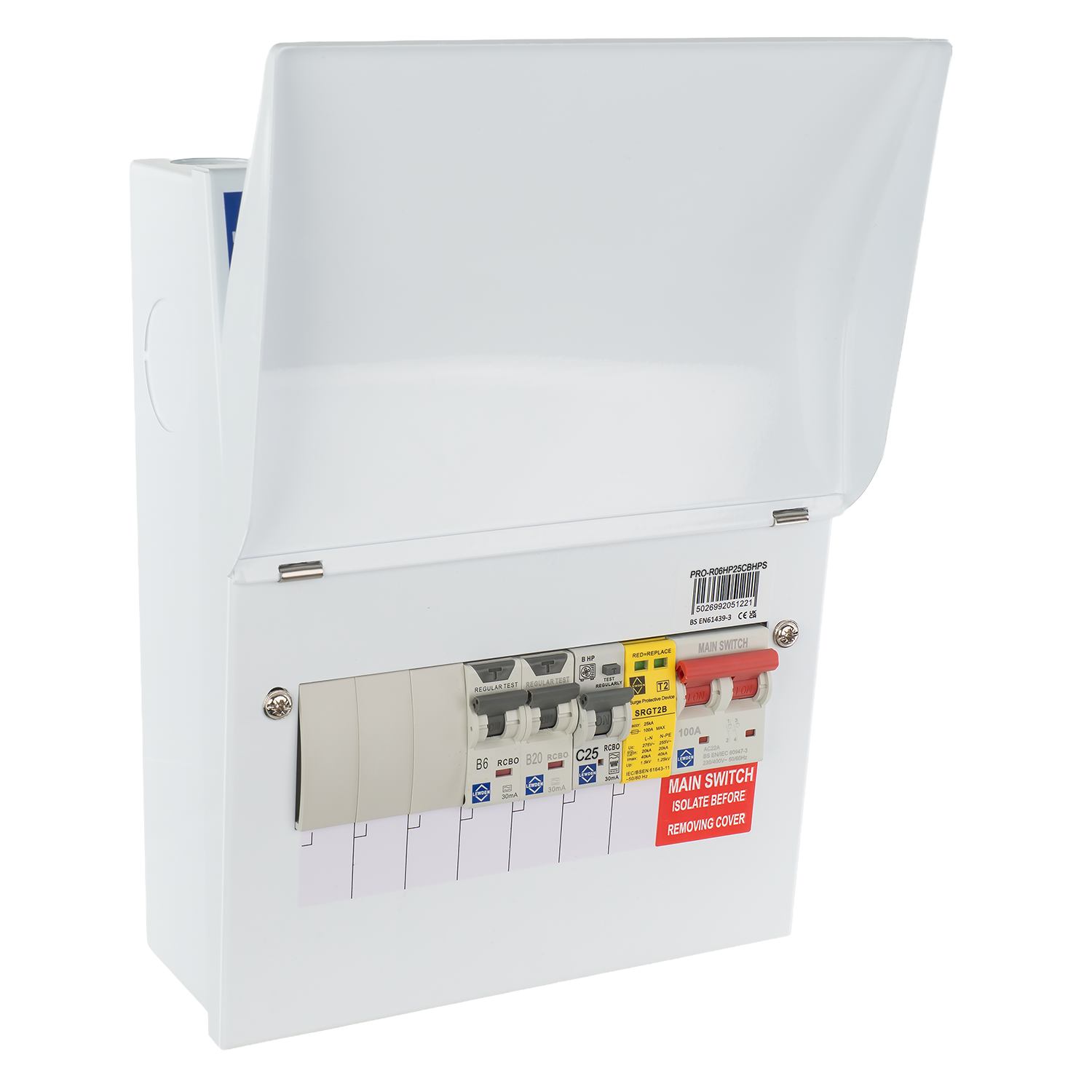

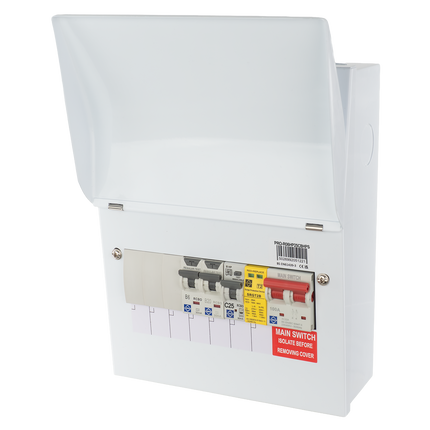

Lewden HPPI-R06W-AC25 6 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

Description

6 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

Lewden HPPI-R06W-AC25

        • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz
        • Prefitted with C25 Heat Pump RCBO, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        The 6 Way Air Source Heat Pump Consumer Unit provides a safe, reliable and compact electrical distribution solution for modern ASHP installations. Designed for inverter-driven heat pump compressors operating at high frequencies, it includes dedicated Heat Pump RCBO protection alongside Type A RCBOs for controls and immersion heater circuits. A built-in Type 2 Surge Protection Device helps protect sensitive electronic equipment against transient voltage spikes. The compact enclosure is ideal for space-restricted installations, while the 100A main switch ensures secure incoming connections. Spare ways provide flexibility for additional heat pump circuits, with round knockouts simplifying professional cable and conduit installation.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)268mm x (W)208mm x (D)109mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 6
        Number of Modules 9
        Surge Protection Fitted Yes
        Voltage Rating 230V

        Read more

        Lewden HPPI-R06W-AC25 6 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

        Product form

        SKU: HPPI-R06W-AC25

        6 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD Lewden HPPI-R06W-AC25 Designed... Read more

        Free pickup in our shop(s)

        £221.68 ex VAT £266.02 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions (H)268mm x (W)208mm x (D)109mm
          Door Type Top Hinged
          Guarantee 1 Year
          Incoming Device 100A Isolator
          Number of Useable Ways 6
          Number of Modules 9
          Surge Protection Fitted Yes
          Voltage Rating 230V
            Downloads

          Description

          6 Way Air Source Heat Pump (ASHP) Consumer Unit with 25A HP RCBO, 2x RCBOs and SPD

          Lewden HPPI-R06W-AC25

                • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz
                • Prefitted with C25 Heat Pump RCBO, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
                • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
                • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
                • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
                • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
                • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
                • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

                The 6 Way Air Source Heat Pump Consumer Unit provides a safe, reliable and compact electrical distribution solution for modern ASHP installations. Designed for inverter-driven heat pump compressors operating at high frequencies, it includes dedicated Heat Pump RCBO protection alongside Type A RCBOs for controls and immersion heater circuits. A built-in Type 2 Surge Protection Device helps protect sensitive electronic equipment against transient voltage spikes. The compact enclosure is ideal for space-restricted installations, while the 100A main switch ensures secure incoming connections. Spare ways provide flexibility for additional heat pump circuits, with round knockouts simplifying professional cable and conduit installation.

                .

                Brand Lewden
                Current Rating 100A
                Dimensions (H)268mm x (W)208mm x (D)109mm
                Door Type Top Hinged
                Guarantee 1 Year
                Incoming Device 100A Isolator
                Number of Useable Ways 6
                Number of Modules 9
                Surge Protection Fitted Yes
                Voltage Rating 230V

                Read more
