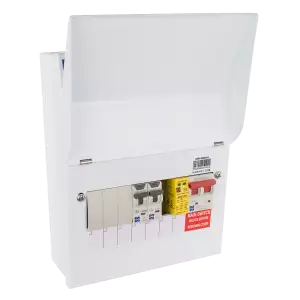

Lewden HPPI-R06W-A 6 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD

Description

6 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD

Lewden HPPI-R06W-A

        • Designed for use within ASHP Installations with inverter-driven compressors operating at frequencies up to 20kHz and above with a minimum tripping point of 150mA above 1kHz
        • Prefitted with 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        The 6 Way Air Source Heat Pump Consumer Unit is designed specifically for modern ASHP installations, including systems with inverter-driven compressors operating at high frequencies. Supplied with two Type A RCBOs for heat pump controls and immersion heater circuits, it provides reliable circuit protection in a compact enclosure. A 100A main switch ensures secure incoming connections, while integrated Type 2 surge protection safeguards sensitive equipment against transient voltage spikes. Spare ways allow additional heat pump circuits to be added when required. Round cable entry knockouts simplify installation with glands, conduit, grommets and SWA cables, providing a professional, flexible ASHP solution.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)268mm x (W)208mm x (D)109mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 6
        Number of Modules 9
        Surge Protection Fitted Yes
        Voltage Rating 230V

        Read more

        Lewden HPPI-R06W-A 6 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD

        Product form

        SKU: HPPI-R06W-A

        6 Way Air Source Heat Pump (ASHP) Consumer Unit with 2x RCBOs and SPD Lewden HPPI-R06W-A Designed for use within... Read more

        Free pickup in our shop(s)

        £84.46 ex VAT £101.35 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions (H)268mm x (W)208mm x (D)109mm
          Door Type Top Hinged
          Guarantee 1 Year
          Incoming Device 100A Isolator
          Number of Useable Ways 6
          Number of Modules 9
          Surge Protection Fitted Yes
          Voltage Rating 230V
