Lewden HPPI-R04W-1 4 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

Description

4 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

Lewden HPPI-R04W-1

        • Designed for use within ASHP Installations requiring Type B RCD protection.

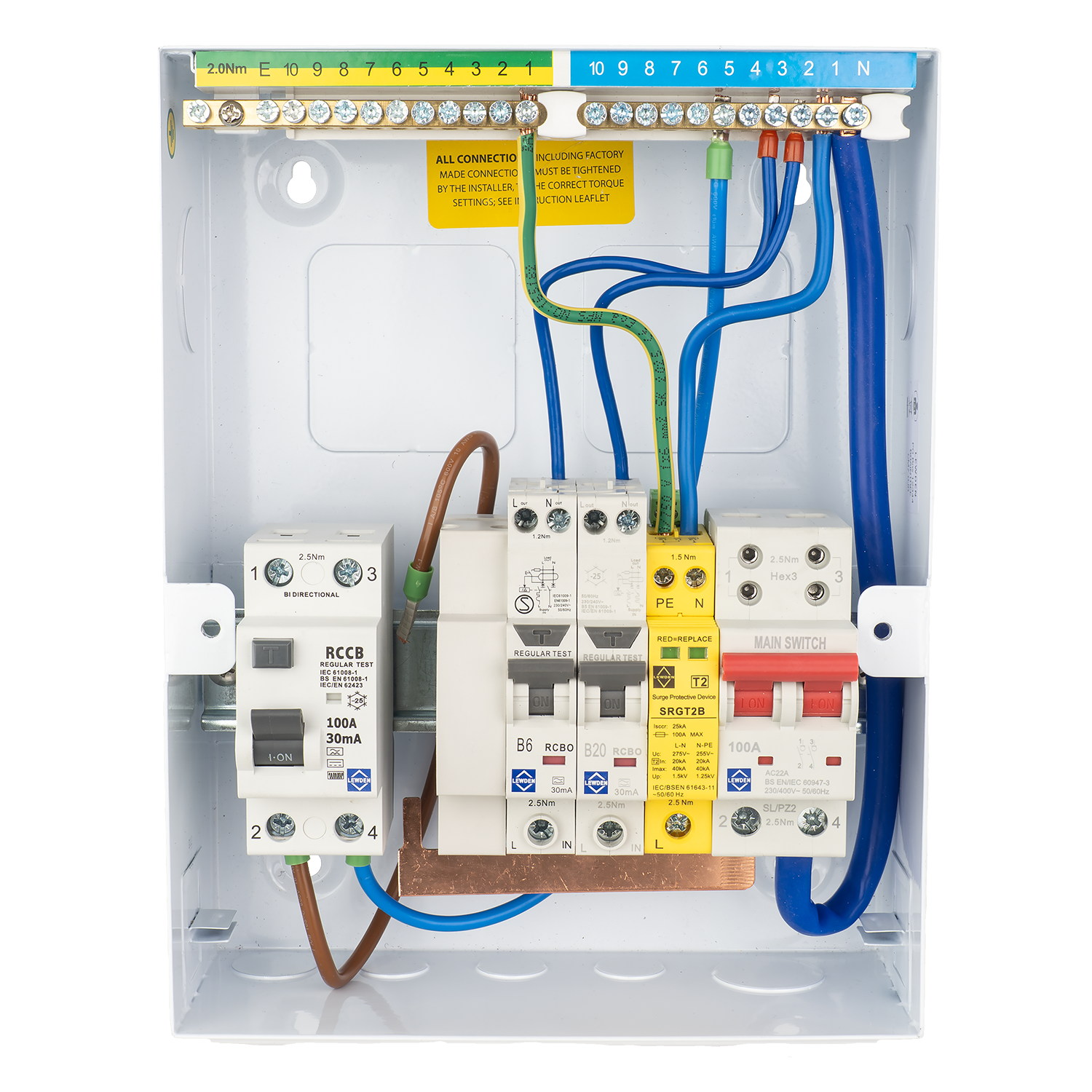

        • Prefitted with 100A Type B RCD, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
        • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
        • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
        • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
        • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
        • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
        • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

        The 4 Way Air Source Heat Pump Consumer Unit provides a safe, compact and reliable solution for modern ASHP installations requiring Type B RCD protection. Supplied with a 100A Type B RCD, Type A RCBO protection for control and immersion heater circuits, and integrated Type 2 surge protection, it helps protect equipment against electrical faults and voltage surges. The compact enclosure is ideal where installation space is limited, while spare ways allow additional heat pump circuits to be added. Round knockouts simplify cable entry and SWA termination. Fully compliant with current BS 7671 wiring regulations for professional installations.

        .

        Brand Lewden
        Current Rating 100A
        Dimensions (H)268mm x (W)208mm x (D)109mm
        Door Type Top Hinged
        Guarantee 1 Year
        Incoming Device 100A Isolator
        Number of Useable Ways 4
        Number of Modules 9
        Surge Protection Fitted Yes
        Voltage Rating 230V

        Read more

        Lewden HPPI-R04W-1 4 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

        Product form

        SKU: HPPI-R04W-1

        4 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD Lewden HPPI-R04W-1... Read more

        Free pickup in our shop(s)

        £164.03 ex VAT £196.84 inc VAT

        Next day delivery

          • Guaranteed secure & safe checkout.

            shop pay
          • Shipped today? Order within: Sep 26, 2026 15:00:00 +0100
          • Free shipping on all orders above £100 + vat
            Specification
          Brand Lewden
          Current Rating 100A
          Dimensions (H)268mm x (W)208mm x (D)109mm
          Door Type Top Hinged
          Guarantee 1 Year
          Incoming Device 100A Isolator
          Number of Useable Ways 4
          Number of Modules 9
          Surge Protection Fitted Yes
          Voltage Rating 230V
            Downloads

          Description

          4 Way Air Source Heat Pump (ASHP) Consumer Unit with 100A Type B RCD, 2x RCBOs and SPD

          Lewden HPPI-R04W-1

                • Designed for use within ASHP Installations requiring Type B RCD protection.
                • Prefitted with 100A Type B RCD, 6A and 20A B curve Type A RCBOs for ASHP Controls and Immersion Heater final circuits.
                • Compact PRO series enclosure optimised for space-constrained installations without compromising functionality.
                • 100A Main Switch with dual screw terminals provide secure termination of incoming tails
                • Built-in Type 2 Surge Protection Device (SPD) safeguards sensitive electronics from transient voltage spikes.
                • Fully compliant with BS 7671:2018+A4:2026 (18th Edition) wiring regulations and relevant product standards.
                • Spare Ways accommodate additional Heat Pumps circuits such as integral Heaters
                • Consumer Unit comes with round knockouts, designed for the installation of round cable glands, conduits, cable grommets and for terminating SWA cables.

                The 4 Way Air Source Heat Pump Consumer Unit provides a safe, compact and reliable solution for modern ASHP installations requiring Type B RCD protection. Supplied with a 100A Type B RCD, Type A RCBO protection for control and immersion heater circuits, and integrated Type 2 surge protection, it helps protect equipment against electrical faults and voltage surges. The compact enclosure is ideal where installation space is limited, while spare ways allow additional heat pump circuits to be added. Round knockouts simplify cable entry and SWA termination. Fully compliant with current BS 7671 wiring regulations for professional installations.

                .

                Brand Lewden
                Current Rating 100A
                Dimensions (H)268mm x (W)208mm x (D)109mm
                Door Type Top Hinged
                Guarantee 1 Year
                Incoming Device 100A Isolator
                Number of Useable Ways 4
                Number of Modules 9
                Surge Protection Fitted Yes
                Voltage Rating 230V

                Read more
